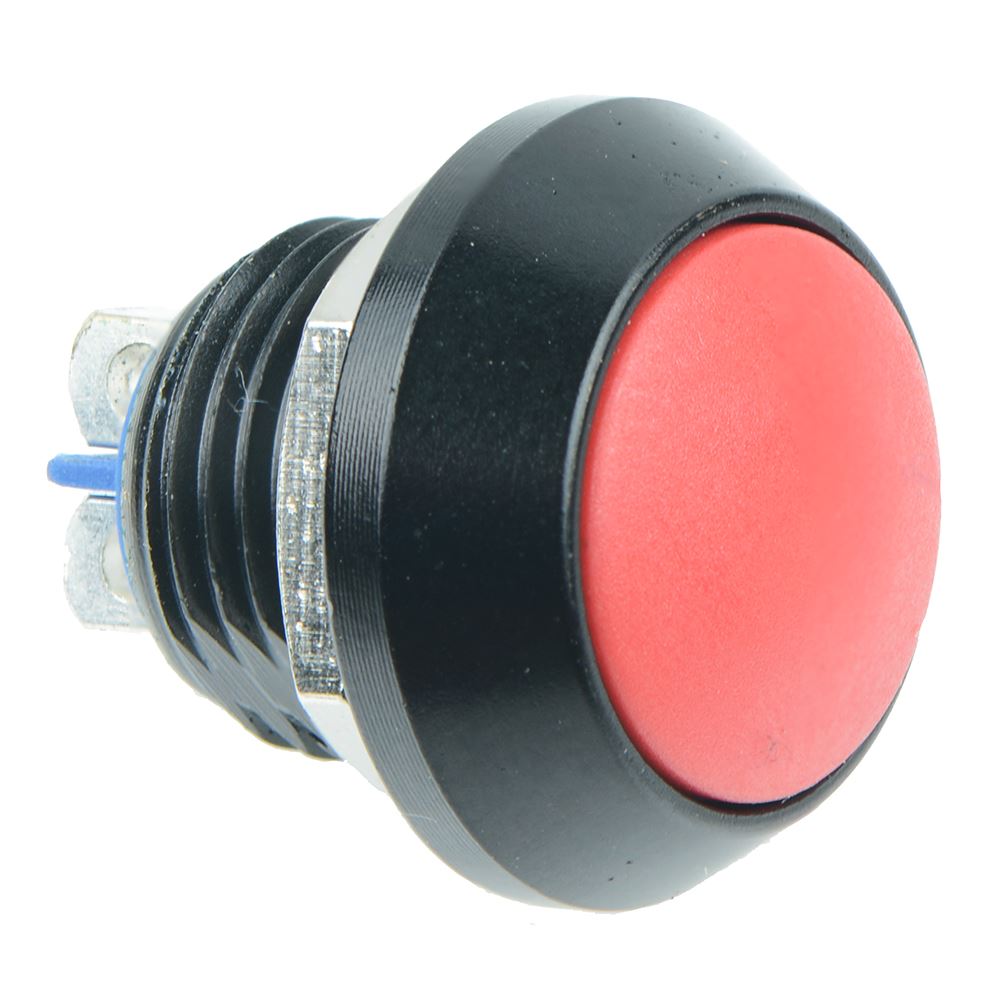

Red Off-(On) Momentary Push Button Switch Screw Terminals SPST IP65

Red Off-(On) Momentary Push Button Switch Screw Terminals SPST IP65 1

Buy Now

Specifications

Attributes List
Actuation	Momentary
Colour	Red
Contact Configuration	SPST
Contact Rating	2A 36VDC
Current Rating	2A
Illuminated	Yes
Electrical Life	50,000 Cycles
Illumination Colour	Red
Illumination Voltage	12VDC
Material	Aluminium
Mounting Style	Panel
Number of Positions	2
Protection Level	IP65
Operating Temperature	-40°C to +85°C
Panel Cut Out	12mm
Switch Operation	Off-(On)
Terminal Type	Screw
Voltage Rating	36VDC

Description

Red Off-(On) Momentary Push Button Switch Screw Terminals SPST IP65

Momentary push button switch with a Off-(On) operation, featuring a compact size and screw terminals. Suitable for low current applications, the switch provides a reliable solution.

Red actuator

Screw terminals

Off-(On) momentary operation

SPST-NO configuration

12mm panel cut-out

IP65 protection

Maximum current rating: 2A

Maximum voltage rating: 36VDC
