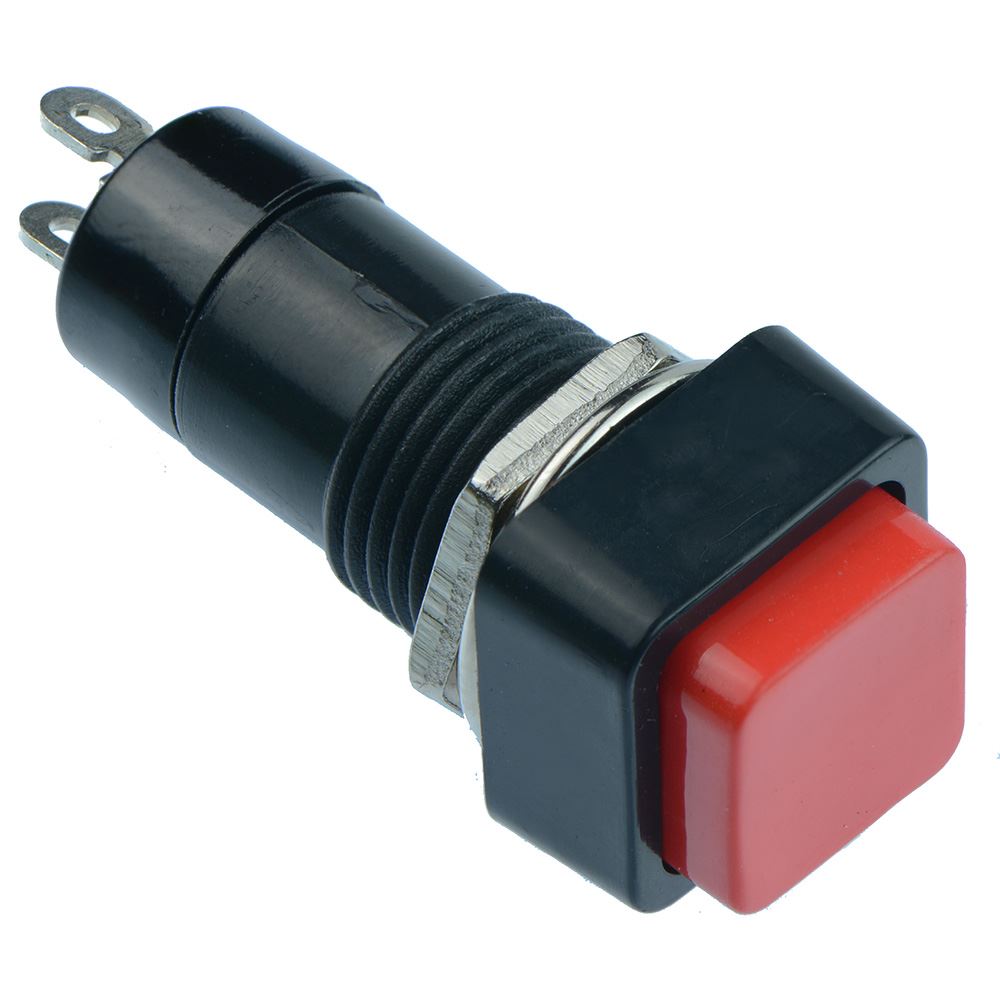

Red On-Off Latching Square Push Button Switch 12mm SPST

Red On-Off Latching Square Push Button Switch 12mm SPST 1

Buy Now

Specifications

Attributes List
Actuation	Latching
Colour	Red
Contact Configuration	SPST
Contact Rating	1A 250VAC
Current Rating	1A
Illuminated	No
Electrical Life	5000 Cycles
Illumination Colour	Non Illuminated
Mounting Style	Panel
Number of Positions	2
Operating Force	300gf
Operating Temperature	0°C to +65°C
Panel Cut Out	12mm
Switch Operation	On-Off
Terminal Type	Solder
Voltage Rating	250VAC

Description

Red On-Off Latching Square Push Button Switch 12mm SPST

Latching push button switch featuring a square actuator and SPST contacts.

Panel cut-out: 12mm

Button size: 11 x 11mm

Rating: 1A 250VAC

Solder lug terminals

On-Off operation

Dimensions: 38.4 x 15.5mm (Height x Width)
