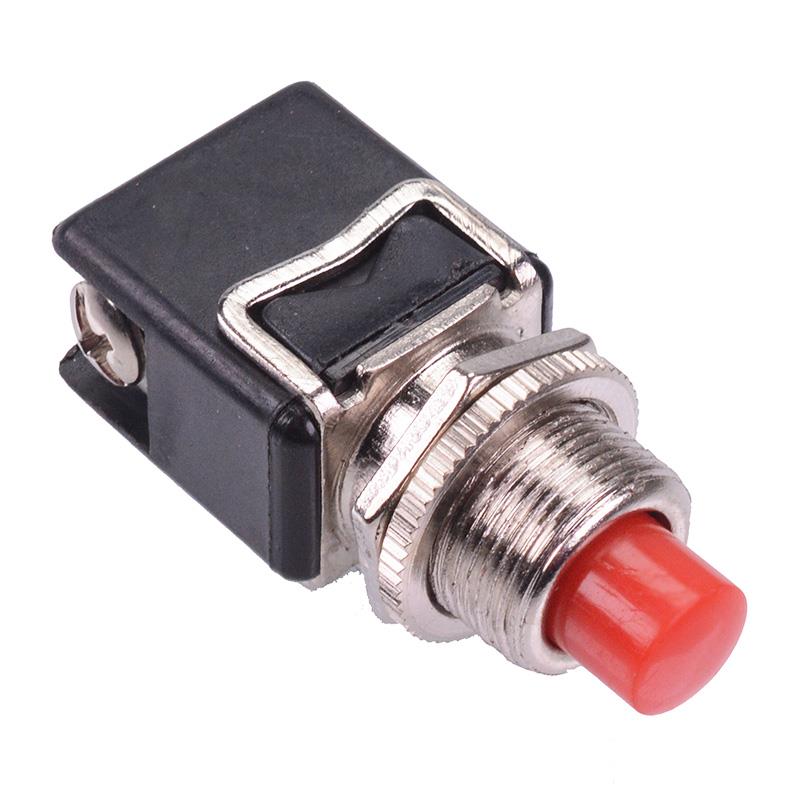

Red On-(Off) Momentary 12mm Push Button Switch SPST 4A

Red On-(Off) Momentary 12mm Push Button Switch SPST 4A 1

Buy Now

Specifications

Attributes List
Actuation	Momentary
Colour	Red
Contact Configuration	SPST
Contact Rating	8A 125VAC, 4A 250VAC
Current Rating	8A @ 125VAC
Illuminated	No
Electrical Life	50,000 Cycles
Illumination Colour	Non Illuminated
Mounting Style	Panel
Number of Positions	2
Operating Temperature	-25°C to +85°C
Panel Cut Out	12mm
Switch Operation	On-(Off)
Terminal Type	Screw
Voltage Rating	250VAC

Description

Red On-(Off) Momentary 12mm Push Button Switch SPST 4A

Red momentary On-(Off) push to break switch featuring SPST contacts and screw terminals. The switch features a compact design and 4A rating making them suitable for a wide range of applications.

On-(Off) action

SPST contacts

Screw terminals

7.7mm diameter button

Panel cut-out: 12mm

Dimensions: 39.5 x 17mm (Height x Width)
