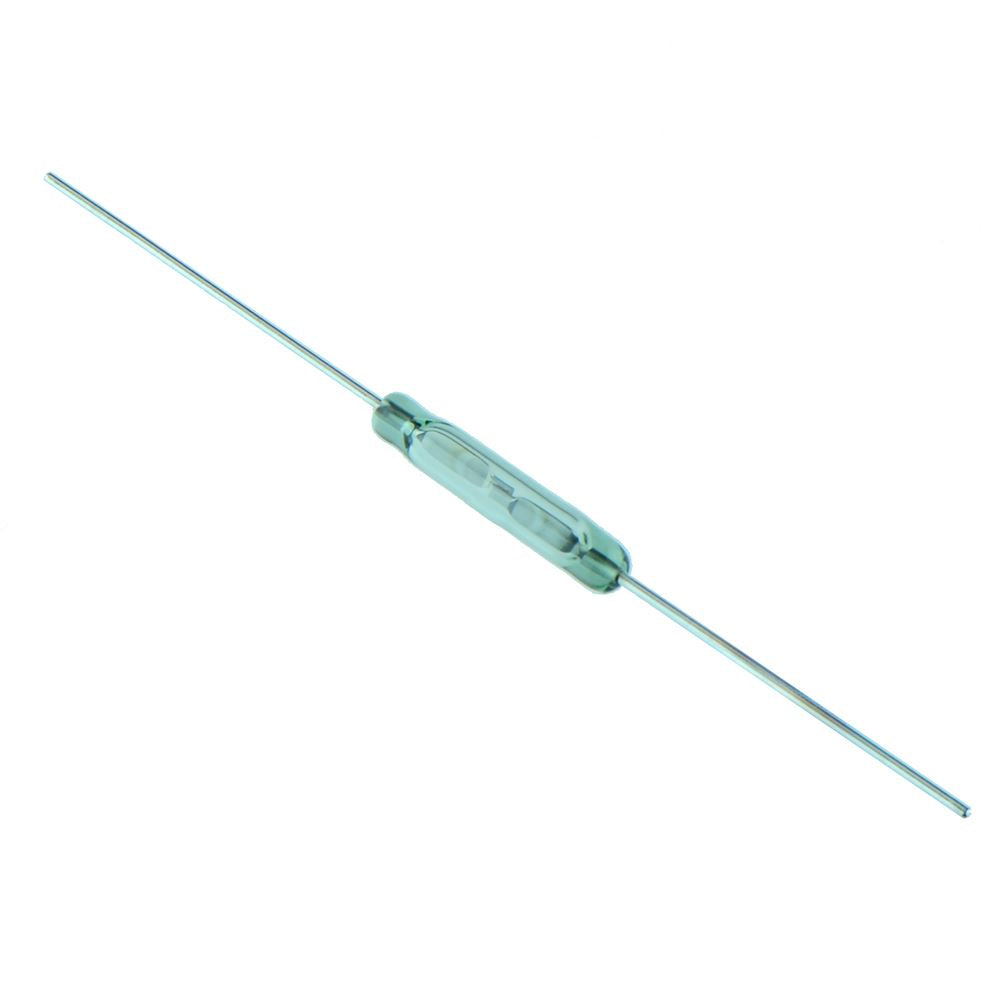

SPST-NO Reed Switch 100mA 24V - 8601-0211-015

SPST-NO Reed Switch 100mA 24V - 8601-0211-015 1

Buy Now

Specifications

Attributes List
Bounce Time	0.3ms
Diameter	2mm
Carry Current	0.3A
Length	10mm
Contact Configuration	SPST-NO
Maximum Switching Capacity	1VA
Maximum Switching Current	0.1A
Drop Out Sensitivity	5AT Min
Maximum Switching Voltage	24VAC/DC
Material	Rhodium
Pull In Sensitivity	10-40AT
Release Time	0.05ms
Operating Temperature	-40°C to +125°C

Description

8601-0211-015 is a dry reed switch that has been hermetically sealed in a gas filled glass housing. The switch features normally open contacts manufactured from Rhodium, and is actuated using an electro-magnet.

Normally open contacts

Maximum switching voltage: 24V AC/DC

Maximum switching current: 0.1A

Maximum switching power: 1VA

Pull-in sensitivity: 10-40AT
