SPST-NO Reed Switch 1A 200VDC 250VAC - RI-46B
from
$2.07
Ex Tax: $2.07
10 or more $1.84
25 or more $1.74
50 or more $1.64
100 or more $1.56
- Stock: In Stock
- Model: SCJ010400
- SKU: SCJ010400
Products Sold: 0
Product Views: 471
Ask a Question About This Product
- Description

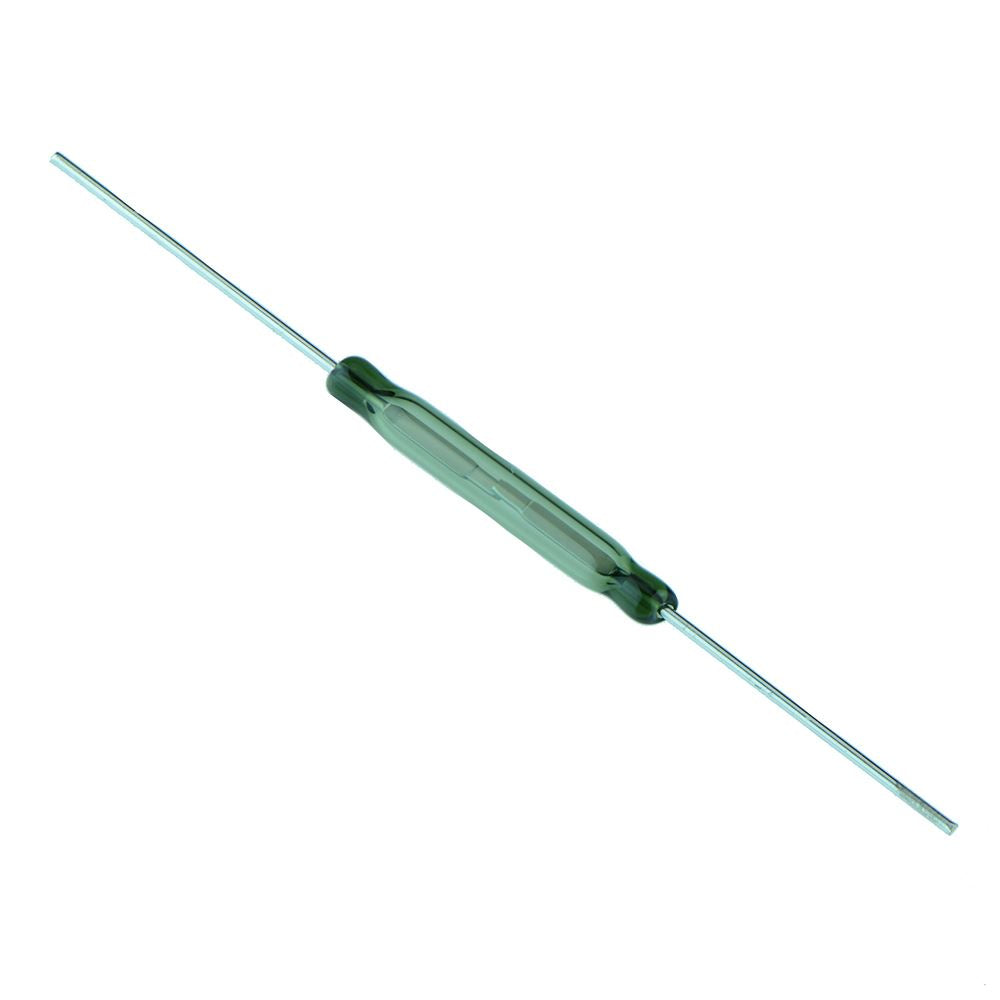

The RI-46B micro dry-reed switch is hermetically sealed in a gas-filled envelope. Single-pole, single-throw (SPST) type, having normally open contacts, and containing two magnetically actuated reeds. The switch is of the double-ended type and may be actuated by an electromagnet, a permanent magnet or a combination of both. The device is intended for use in sensors, relays, pulse counters or similar devices.
Can switch main voltage Contact layers: ruthenium on gold Superior glass-to-metal seal and blade alignment Excellent life expectancy and reliability Maximum switching power: 40W Maximum switching voltage: 200VDC, 250VAC Maximum switching current: 1A Operating range: 24-51AT
