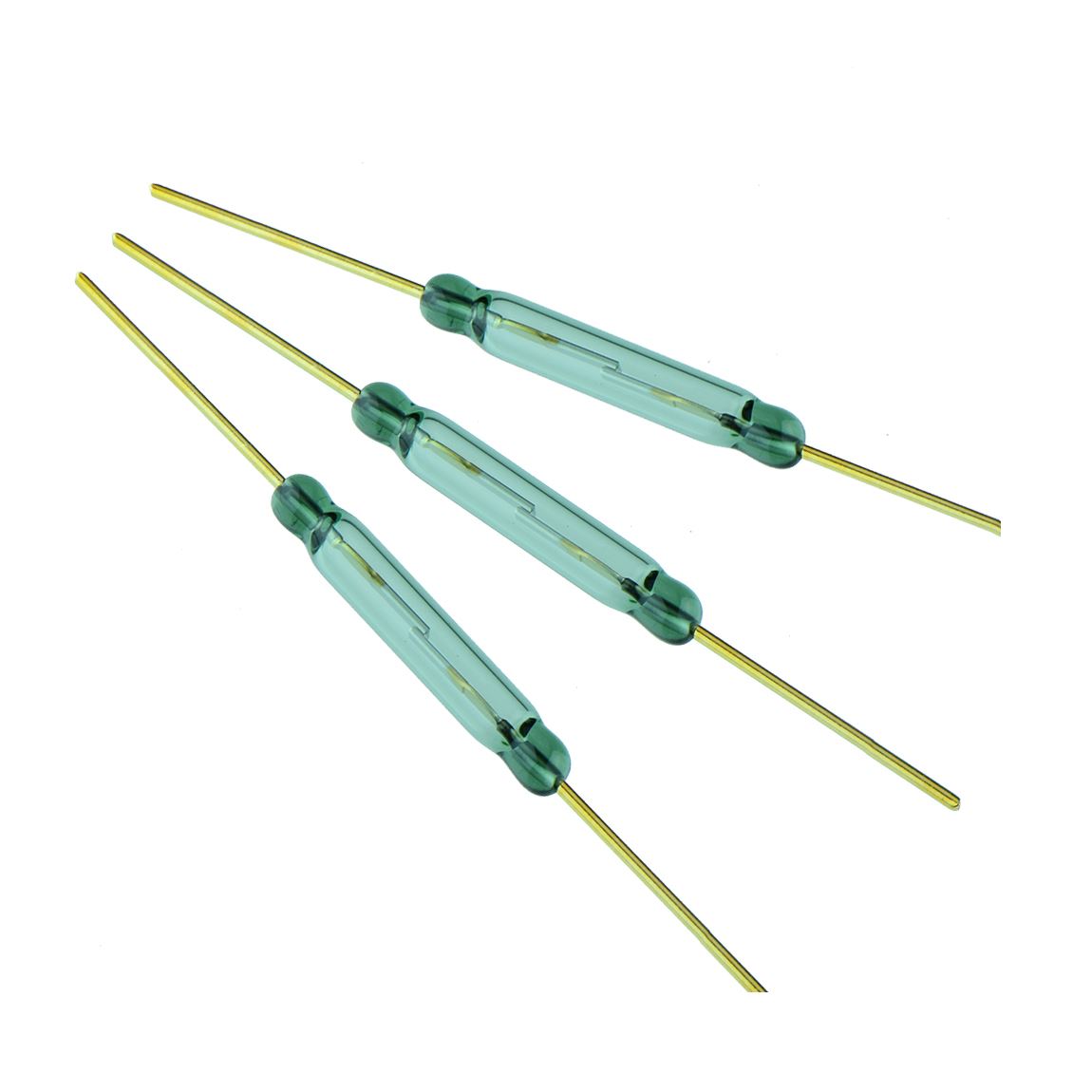

SPST-NO Reed Switch Kit 3A - GC3823K

SPST-NO Reed Switch Kit 3A - GC3823K 1

Buy Now

Specifications

Attributes List
Bounce Time	0.5ms
Diameter	3.8mm
Carry Current	4A
Length	24.5mm
Contact Configuration	SPST-NO
Maximum Switching Capacity	60W/VA
Maximum Switching Current	3A
Drop Out Sensitivity	15AT Min
Maximum Switching Voltage	230VAC/DC
Material	Rhodium
Pull In Sensitivity	30-40 / 45-60 / 60-70AT
Release Time	0.1ms
Operating Temperature	-40°C to +125°C

Description

GC3823K kit provides a selection of sensitivity levels form the series allowing you to test which is the best for your application. The switches are hermetically sealed in a gas filled glass housing, featuring normally open contacts manufactured from Rhodium, actuated using an electro-magnet.

Includes 1qty of each sensitivity

Normally open contacts

Maximum switching voltage: 230V AC/DC

Maximum switching current: 3A

Maximum switching power: 60VA

Pull-in sensitivity: 30-40 / 45-60 / 60-70AT
