SPST-NO SMD Reed Switch 350mA 175V - RI-80
from
$5.02
Ex Tax: $5.02
10 or more $4.47
25 or more $4.22
50 or more $3.98
100 or more $3.77
- Stock: In Stock
- Model: SCJ010410
- SKU: SCJ010410
Products Sold: 0
Product Views: 577
Ask a Question About This Product
- Description

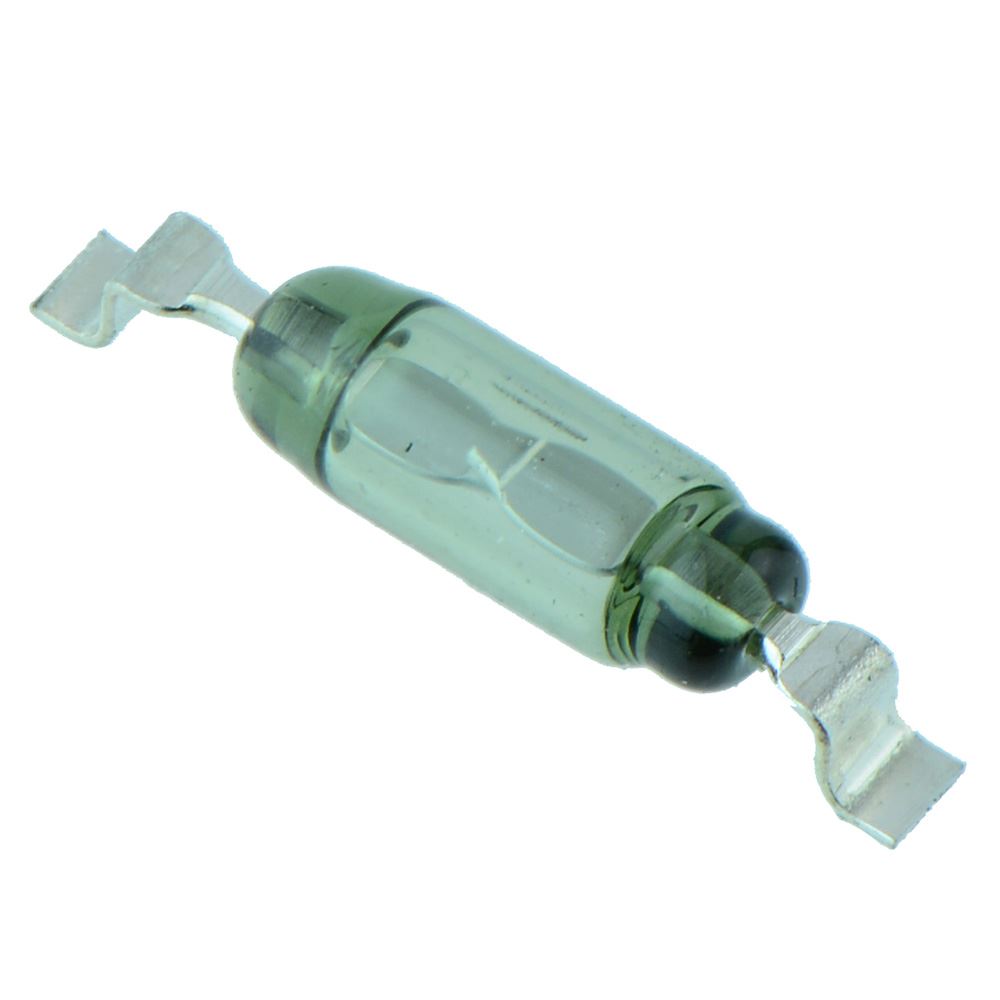

The RI-80-G is a ultra-micro dry-reed switch hermetically sealed in a gas-filled glass envelope. Single-pole, single-throw (SPST) type, having normally open contacts, and containing two magnetically actuated reeds. The switch is of the double-ended type and may be actuated by an electro-magnet, a permanent magnet or a combination of both.
Ideal for proximity sensors, telecom & medical applications Contact layers: gold, sputtered ruthenium Superior glass-to-metal seal and blade alignment Maximum switching power: 5W Maximum switching voltage: 175VDC, 140VAC Maximum switching current: 350mA DC, 250mA AC Operating range: 5-15AT
