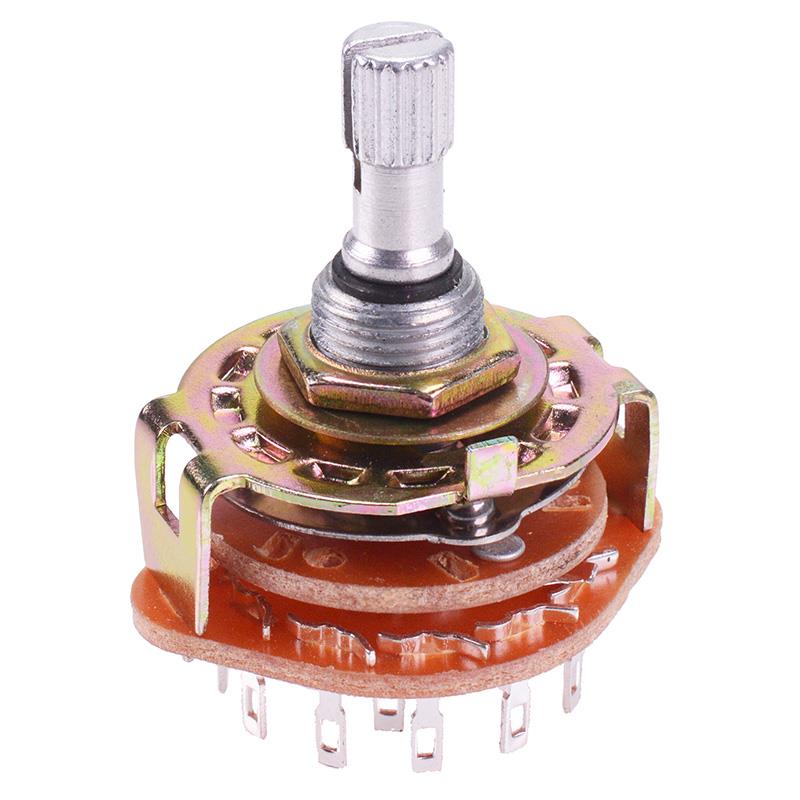

4 Pole 3 Way Rotary Switch 6mm Actuator

4 Pole 3 Way Rotary Switch 6mm Actuator 1

Buy Now

Specifications

Attributes List
Contact Configuration	4P3T
Contact Rating	0.5A 125VAC, 0.3A 250VAC
Current Rating	0.5A @ 125VAC
Electrical Life	20,000 Cycles
Mounting Style	Panel
Number of Poles	4
Number of Ways	3
Operating Temperature	-25°C to +85°C
Panel Cut Out	9.5mm
Terminal Type	Solder
Voltage Rating	250VAC

Description

4 pole 3 way rotary switch featuring a splined 6mm shaft featuring solder terminals, suitable for panel mount applications.

4 pole 3 position

0.5A 125VAC, 0.3A 250VAC

Solder terminals

6mm splined shaft

Mounting hole diameter: 9.5mm

Dimensions: 39.5 x 31mm (Height x Width)
