On-Off-(On) Momentary Locking 6.35mm Miniature Toggle Switch SPDT 4A 30VDC 5238ADKB8V

On-Off-(On) Momentary Locking 6.35mm Miniature Toggle Switch SPDT 4A 30VDC 5238ADKB8V 1

Buy Now

Specifications

Attributes List
Actuation	Latching / Momentary
Contact Configuration	SPDT
Contact Material	Gold Plated Silver
Contact Rating	4A 30VDC
Current Rating	4A
Illuminated	No
Electrical Life	50,000 Cycles
Mounting Style	Panel
Number of Poles	1
Number of Positions	3
Operating Temperature	-40°C to +85°C
Panel Cut Out	6.5mm
Panel Thickness	2.5mm
Pitch	4.7mm
Product Series	5000
Switch Operation	On-Off-(On)
Terminal Type	Through Hole
Voltage Rating	30VDC

Description

On-Off-(On) Momentary Locking 6.35mm Miniature Toggle Switch SPDT 4A 30VDC 5238ADKB8V

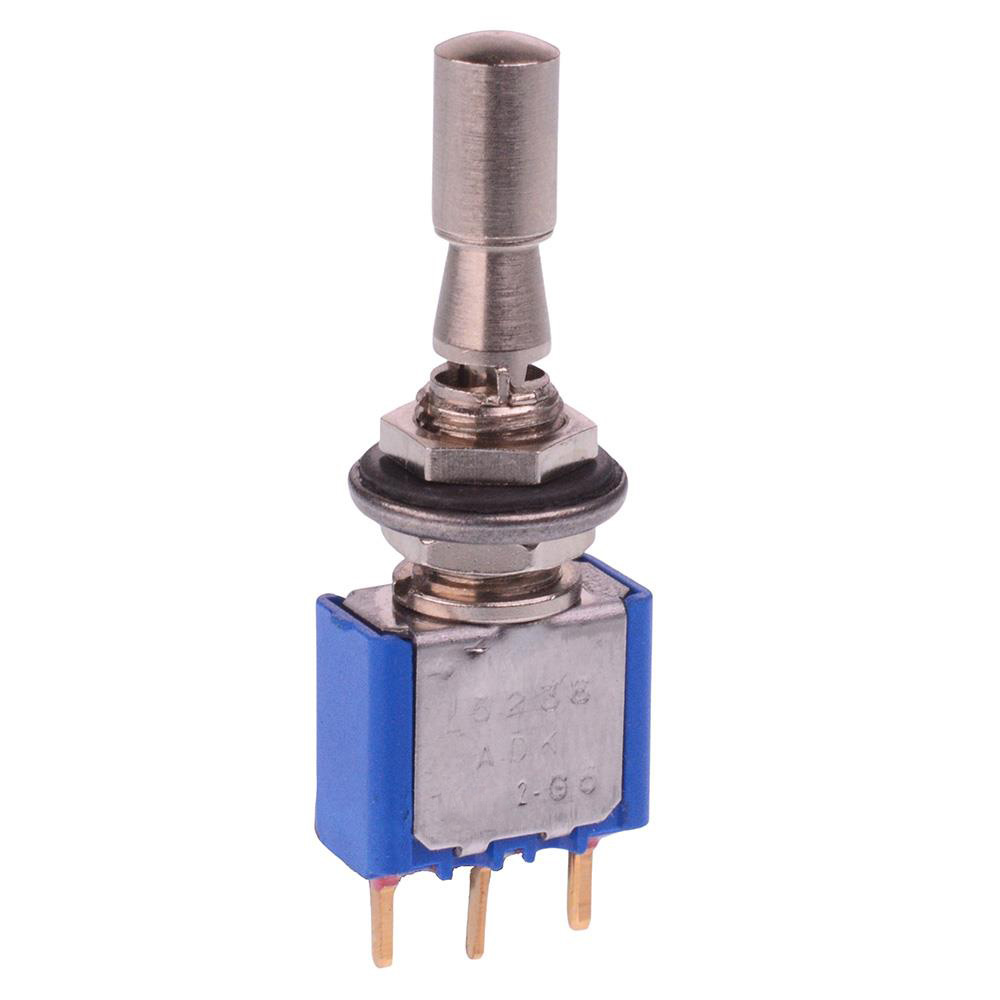

The 5238ADKB8V is a miniature toggle switch featuring a 6.35mm bushing and On-Off-(On) momentary SPDT contacts, from the socoje 5000 series of switches. The switches meet UL, CSA, CECC approvals and feature PCB terminals making them suitable for a wide range of panel and PCB mount applications.

SPDT contacts

On-Off-(On) momentary operation

PCB terminals

Lever: locking 15.1mm length

4.7mm pitch terminal spacing

Rating: 4A 30VDC

Panel cut-out: 6.5mm

Epoxy sealed terminals

socoje 5000 series
