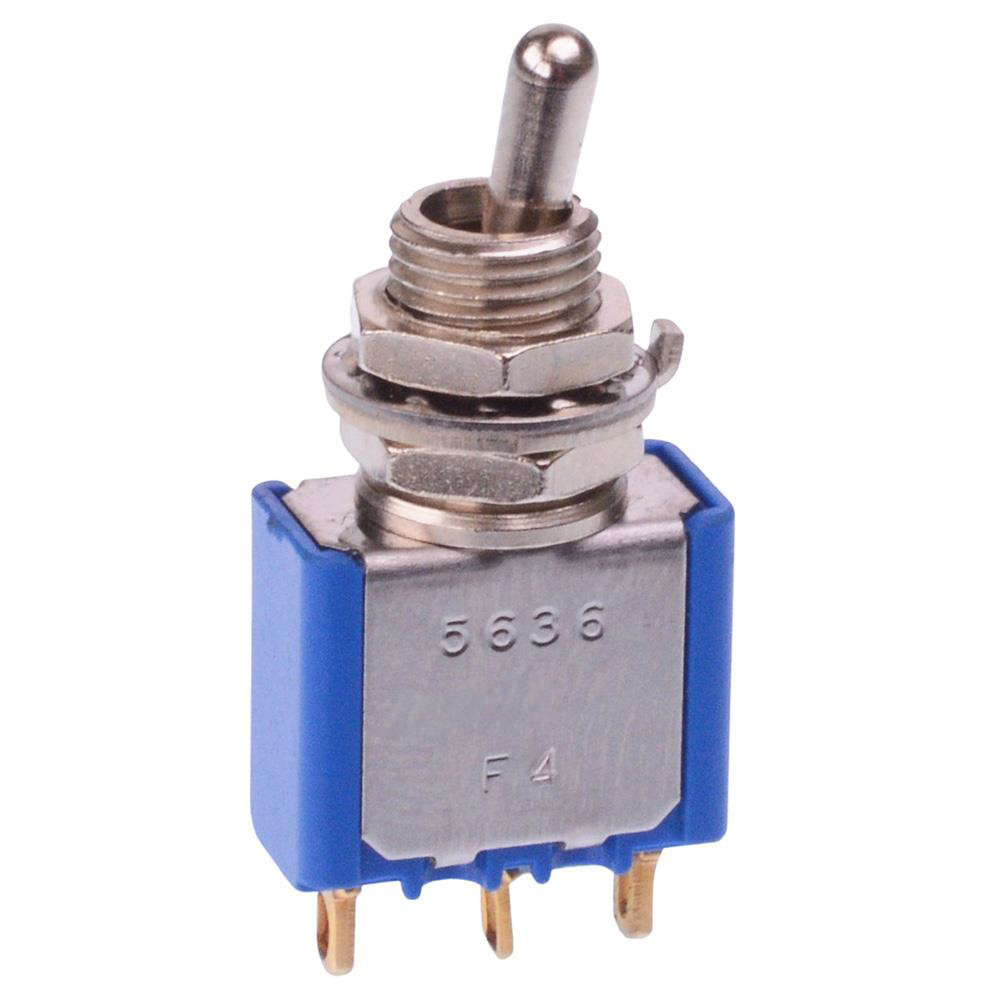

On-On 6.35mm Miniature Toggle Switch SPDT 5636CD16

On-On 6.35mm Miniature Toggle Switch SPDT 5636CD16 1

Buy Now

Specifications

Attributes List
Actuation	Latching
Contact Configuration	SPDT
Contact Material	Gold Plated Brass
Contact Rating	0.4VA 20VAC/DC
Current Rating	0.4VA
Illuminated	No
Electrical Life	50,000 Cycles
Mounting Style	Panel
Number of Poles	1
Number of Positions	2
Operating Temperature	-40°C to +85°C
Panel Cut Out	6.5mm
Panel Thickness	2.5mm
Product Series	5000
Switch Operation	On-On
Terminal Type	Solder
Voltage Rating	20VAC/DC

Description

On-On 6.35mm Miniature Toggle Switch SPDT 5636CD16

The 5636CD16 is a miniature toggle switch featuring a 6.35mm bushing and On-On SPDT contacts, from the socoje 5000 series of switches. The switches meet UL, CSA, CECC approvals and feature solder terminals making them suitable for a wide range of panel mount applications.

SPDT contacts

On-On operation

Solder terminals

Lever: round 5.5mm length

Rating: 0.4VA 20VAC/DC

Panel cut-out: 6.5mm

socoje 5000 series
