On-Off-On 12mm Toggle Switch 3PDT 15A 659H/2

On-Off-On 12mm Toggle Switch 3PDT 15A 659H/2 1

Buy Now

Specifications

Attributes List
Actuation	Latching
Contact Configuration	3PDT
Contact Material	Silver / Nickel Alloy
Contact Rating	15A 250VAC
Current Rating	15A
Illuminated	No
Electrical Life	10,000 Cycles
Mounting Style	Panel
Number of Poles	3
Number of Positions	3
Operating Temperature	-20°C to +55°C
Panel Cut Out	12.2mm
Product Series	600
Switch Operation	On-Off-On
Terminal Type	Quick Connect
Voltage Rating	250VAC / 24VDC

Description

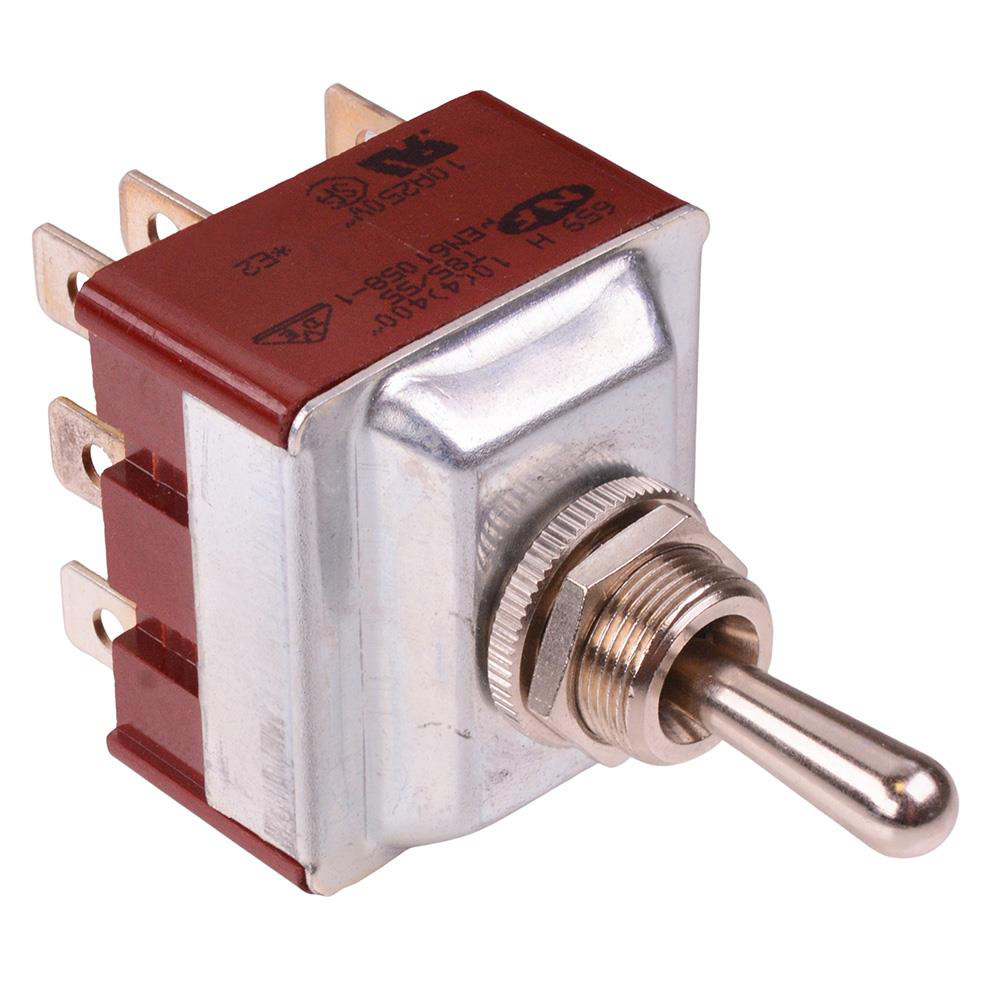

On-Off-On 12mm Toggle Switch 3PDT 15A 659H/2

The 659H/2 is a 3PDT toggle switch with 12mm bushing and quick connect terminals, manufactured by socoje. The switch features a metal lever and robust mechanim, suitable for industrial applications with a high amperage.

3PDT contacts

On-Off-On function

Quick connect terminals

Rating: 15A 250VAC

Panel cut-out: 12.2mm

Panel thickness: 4.5mm max

Terminals: silver/nickel alloy
