Black Off-(On) Momentary 12mm Toggle Switch DPST 6.5A 6643-03

Black Off-(On) Momentary 12mm Toggle Switch DPST 6.5A 6643-03 1

Buy Now

Specifications

Attributes List
Actuation	Momentary
Contact Configuration	DPST
Contact Material	Silver
Contact Rating	6.5A 30VDC
Current Rating	6.5A
Illuminated	No
Electrical Life	10,000 Cycles
Mounting Style	Panel
Number of Poles	2
Number of Positions	2
Operating Temperature	-40°C to +85°C
Panel Cut Out	12.2mm
Product Series	6000
Switch Operation	Off-(On)
Terminal Type	Screw
Voltage Rating	30VDC

Description

Black Off-(On) Momentary 12mm Toggle Switch DPST 6.5A 6643-03

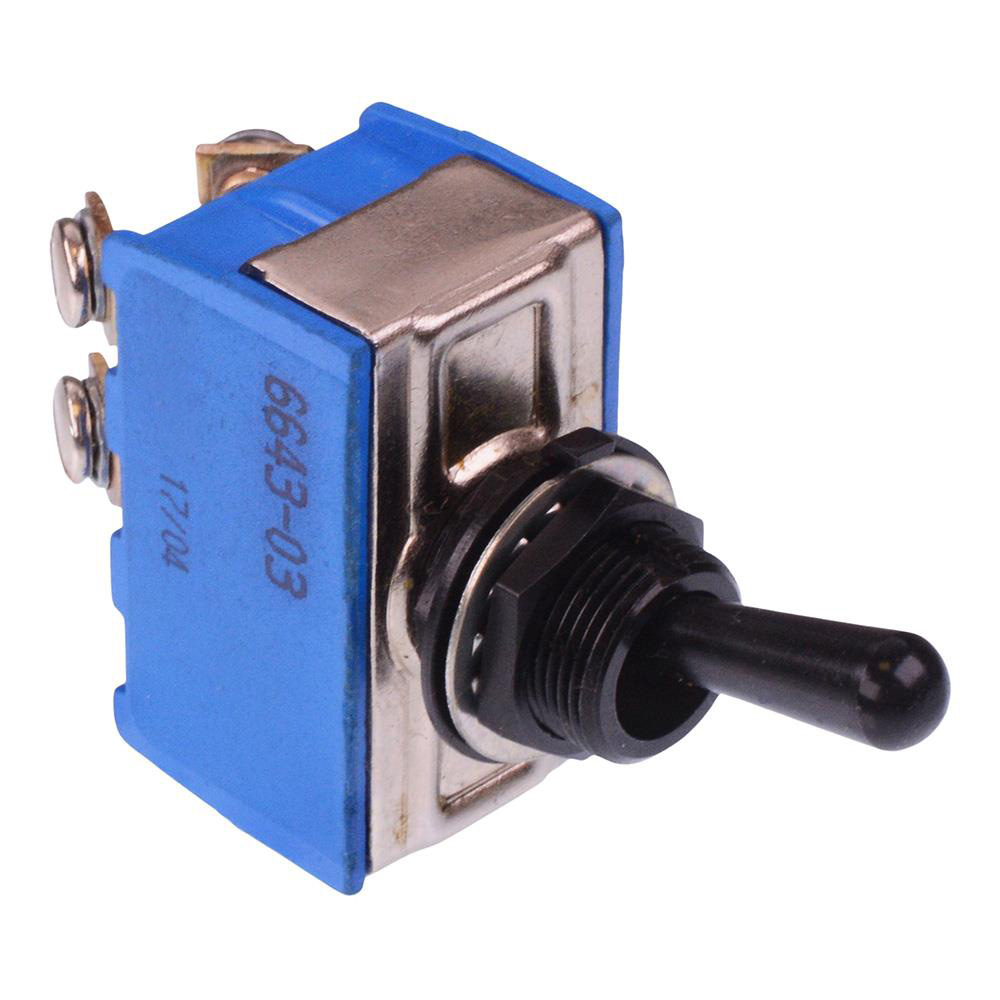

The 6643-03 is a DPST momentary toggle switch with 12mm bushing and screw terminals, manufactured by socoje. The switch features a black metal lever and is suited for rugged and demanding applications.

DPST contacts

Off-(On) momentary function

Screw terminals

Rating: 6.5A 30VDC

Panel cut-out: 12.2mm

Panel thickness: 5mm max

Terminals: silver
