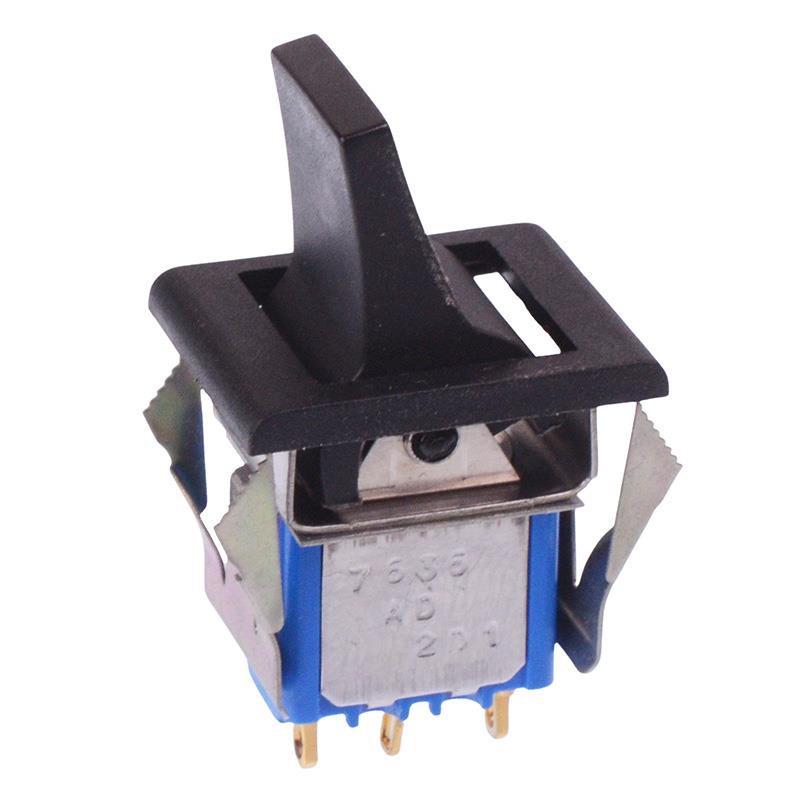

Black Paddle On-On Snap-In Rocker Switch SPDT 4A 30VDC 7636A

Black Paddle On-On Snap-In Rocker Switch SPDT 4A 30VDC 7636A 1

Buy Now

Specifications

Attributes List
Actuation	Latching
Colour	Black
Contact Configuration	SPDT
Contact Material	Silver
Contact Rating	4A 30VDC
Current Rating	4A
Illuminated	No
Electrical Life	50,000 Cycles
Mounting Style	Panel
Number of Poles	1
Number of Positions	2
Operating Temperature	-40°C to +85°C
Panel Cut Out	15 x 12.5mm
Panel Thickness	1-2.5mm
Pitch	4.7mm
Switch Operation	On-On
Terminal Type	Solder
Voltage Rating	30VDC

Description

Black Paddle On-On Snap-In Rocker Switch SPDT 4A 30VDC 7636A

The 7636A is a black paddle snap-in rocker switch featuring SPDT contacts, suitable for panel mounting applications.

Black board paddle U702

SPDT contacts

On-On operation

Solder lug terminals

Silver contacts

Panel thickness: 1 to 2.5mm

Panel cut-out: 15 x 12.5mm

Rating: 4A 30VDC

4.7mm terminal pitch
