Black On-On Snap-In Rocker Switch DPDT 4A 30VDC 7646AB

Black On-On Snap-In Rocker Switch DPDT 4A 30VDC 7646AB 1

Buy Now

Specifications

Attributes List
Actuation	Latching
Colour	Black
Contact Configuration	DPDT
Contact Material	Silver
Contact Rating	4A 30VDC
Current Rating	4A
Illuminated	No
Electrical Life	50,000 Cycles
Mounting Style	Panel
Number of Poles	2
Number of Positions	2
Operating Temperature	-40°C to +85°C
Panel Cut Out	15 x 12.5mm
Panel Thickness	1-2.5mm
Pitch	4.7mm
Switch Operation	On-On
Terminal Type	Solder
Voltage Rating	30VDC

Description

Black On-On Snap-In Rocker Switch DPDT 4A 30VDC 7646AB

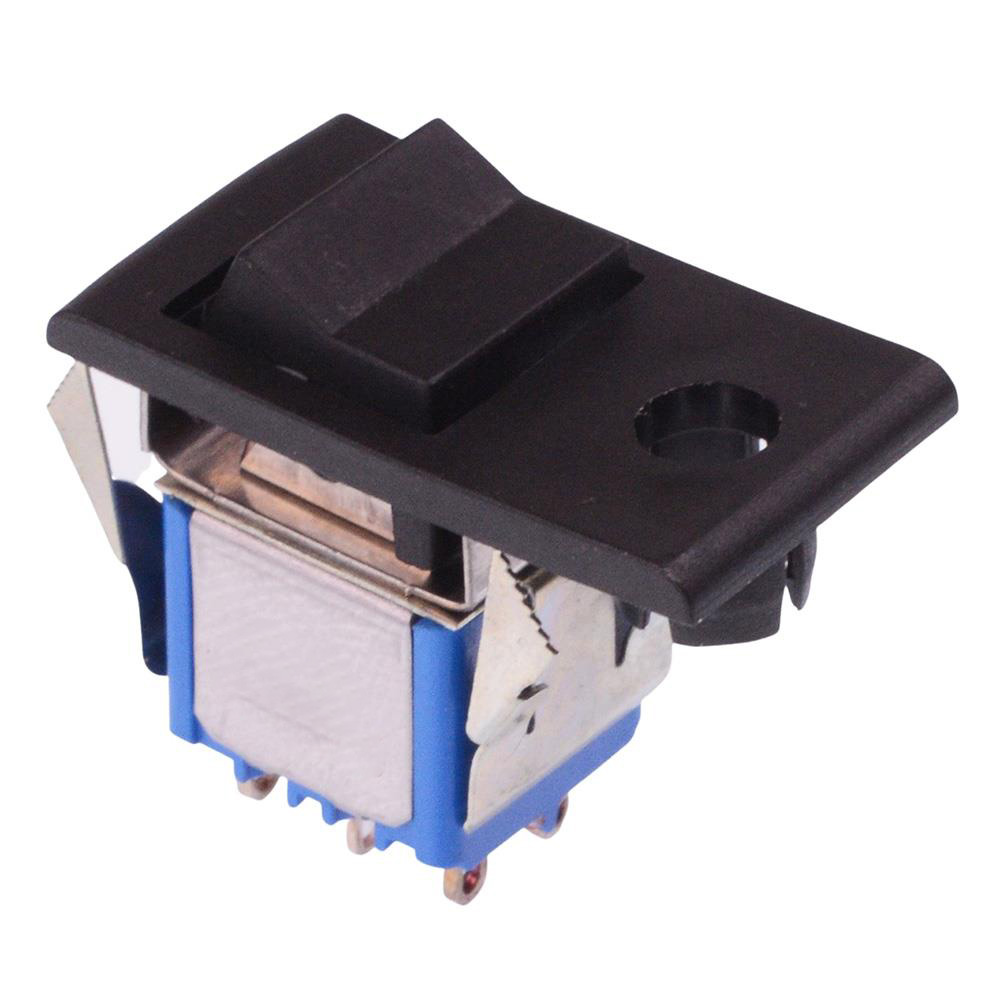

The 7646AB is a black snap-in rocker switch featuring a black bezel incorporating a LED cut-out, suitable for panel mounting applications.

Black rocker actuator

DPDT contacts

On-On operation

Compatible with 5mm LED

Solder lug terminals

Silver contacts

Epoxy sealed terminals

Panel thickness: 1 to 2.5mm

Panel cut-out: 15 x 12.5mm

Rating: 4A 30VDC

4.7mm terminal pitch
