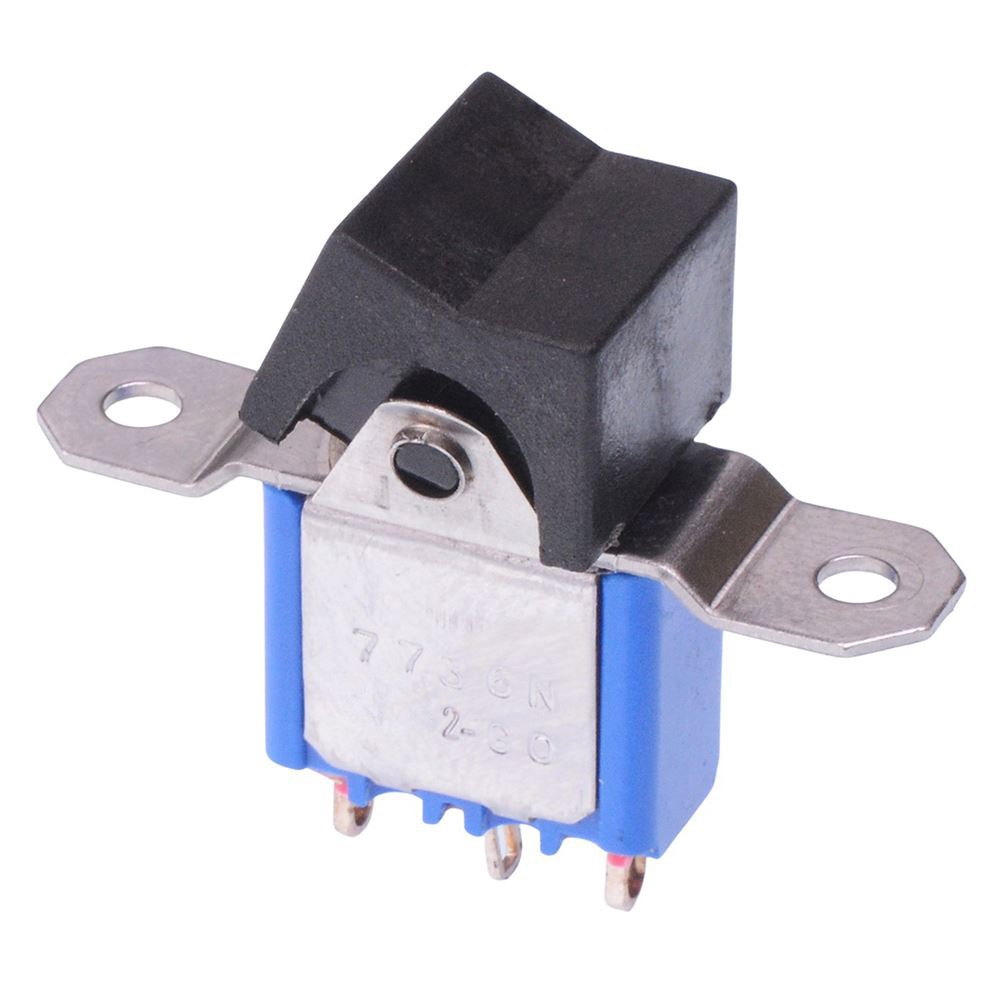

Black On-On Panel Mount Rocker Switch SPDT 4A 30VDC 7736NAB

Black On-On Panel Mount Rocker Switch SPDT 4A 30VDC 7736NAB 1

Buy Now

Specifications

Attributes List
Actuation	Latching
Contact Configuration	SPDT
Contact Material	Silver
Contact Rating	4A 30VDC
Current Rating	4A
Illuminated	No
Electrical Life	50,000 Cycles
Mounting Style	Panel
Number of Poles	1
Number of Positions	2
Operating Temperature	-40°C to +85°C
Pitch	4.7mm
Switch Operation	On-On
Terminal Type	Solder
Voltage Rating	30VDC

Description

Black On-On Panel Mount Rocker Switch SPDT 4A 30VDC 7736NAB

The 7736NAB is a rocker switch featuring SPDT contacts, suitable for panel mounting applications.

SPDT contacts

On-On operation

Solder lug terminals

Mounting plate

Silver contacts

Epoxy sealed terminals

Rating: 4A 30VDC

4.7mm terminal pitch
