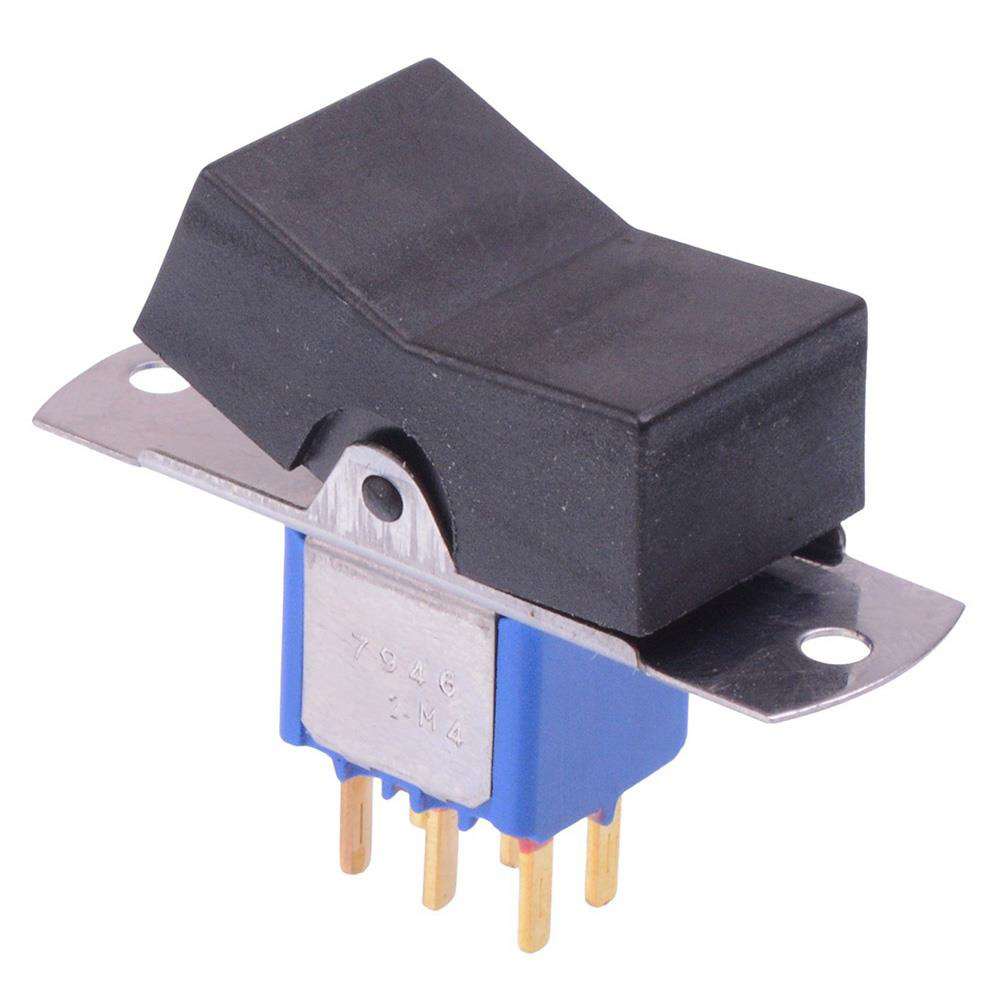

Black On-On Panel Mount PCB Rocker Switch DPDT 0.4A 20V 7946ZCD

Black On-On Panel Mount PCB Rocker Switch DPDT 0.4A 20V 7946ZCD 1

Buy Now

Specifications

Attributes List
Actuation	Latching
Colour	Black
Contact Configuration	DPDT
Contact Material	Gold Plated Brass
Contact Rating	0.4A 20VAC/DC
Current Rating	0.4A
Illuminated	No
Electrical Life	50,000 Cycles
Mounting Style	PCB
Number of Poles	2
Number of Positions	2
Operating Temperature	-40°C to +85°C
Pitch	4.7mm
Switch Operation	On-On
Terminal Type	PCB
Voltage Rating	20VAC/DC

Description

Black On-On Panel Mount PCB Rocker Switch DPDT 0.4A 20V 7946ZCD

The 7946ZCD is a black rocker switch featuring DPDT contacts, suitable for panel and PCB mounting applications.

Black large rocker U532

DPDT contacts

On-On operation

PCB terminals

Mounting bracket

Gold plated brass contacts

Rating: 0.4A 20VAC/DC

4.7mm terminal pitch
