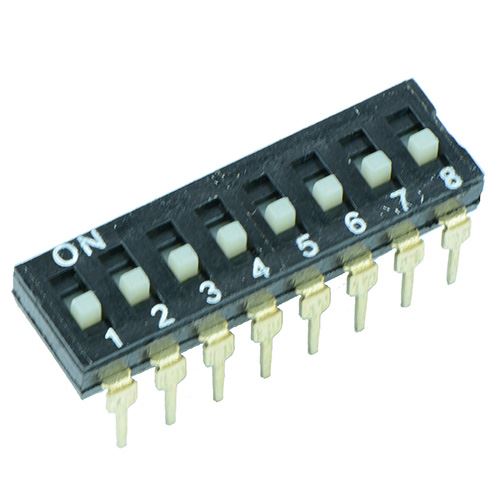

8 Way Low Profile DIL Switch

8 Way Low Profile DIL Switch 1

Buy Now

Specifications

Attributes List
Actuation	Latching
Colour	Black
Contact Configuration	SPST
Contact Rating	25mA 24VDC
Current Rating	25mA
Electrical Life	1,000 Cycles
Material	PPS
Mounting Style	Through Hole
Number of Positions	2
Number of Ways	8
Operating Force	8N Max
Operating Temperature	-25°C to +70°C
Pitch	2.54mm
Switch Operation	On-Off
Terminal Type	Solder
Voltage Rating	24VDC

Description

Low profile DIL switches manufactured from PPS, featuring 2.54mm pitch and SPST contacts.

8 ways

Rating: 25mA 24VDC

Housing material: PPS

Contact material: gold plated brass

Operating force: 8N

7.62mm row pitch

2.54mm lead pitch

End stackability
