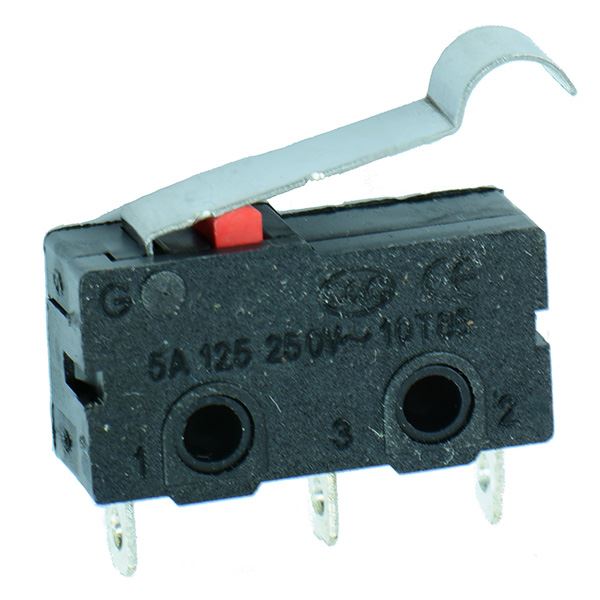

Arc Lever V4 Microswitch SPDT

Buy Now

Specifications

Attributes List
Contact Configuration	SPDT
Contact Rating	5A 250VAC
Current Rating	5A
Electrical Life	100,000 Cycles
Number of Positions	2
Operating Temperature	-25°C to +80°C
Terminal Type	Solder
Voltage Rating	250VAC

Description

V4 microswitch with a compact body suitable for use with a wide range of electrical equipment.

SPDT contacts

Solder terminals

Dimensions: 19.8 x 12 x 6.4mm (Length x Height x Width)

Maximum current: 5A

Maximum voltage: 250VAC
