Off-(On) Momentary 22mm Anti Vandal Push Button Switch SPST AV041003D940T

Off-(On) Momentary 22mm Anti Vandal Push Button Switch SPST AV041003D940T
Off-(On) Momentary 22mm Anti Vandal Push Button Switch SPST AV041003D940T
0 reviews - Write a review
from
$23.22
Ex Tax: $23.22
10 or more $20.66
25 or more $19.50
50 or more $18.35
100 or more $17.42
  • Stock: In Stock
  • Model: SCJ013869
  • SKU: SCJ013869
Products Sold: 0
Product Views: 447
Add to Cart
Buy Now Ask a question
Add to Wish List Compare this Product
Add to Cart
Buy Now
  • Specifications
Attributes List
ActuationMomentary
Contact ConfigurationSPST
Contact Rating2A 48VDC
Current Rating2A
IlluminatedNo
MaterialStainless Steel
Mounting StylePanel
Number of Poles1
Number of Positions2
Operating Temperature-30°C to +70°C
Panel Cut Out22.2mm
Panel Thickness1-11mm
Product SeriesAV
Switch OperationOff-(On)
Terminal TypeScrew
Voltage Rating48VDC
  • Description

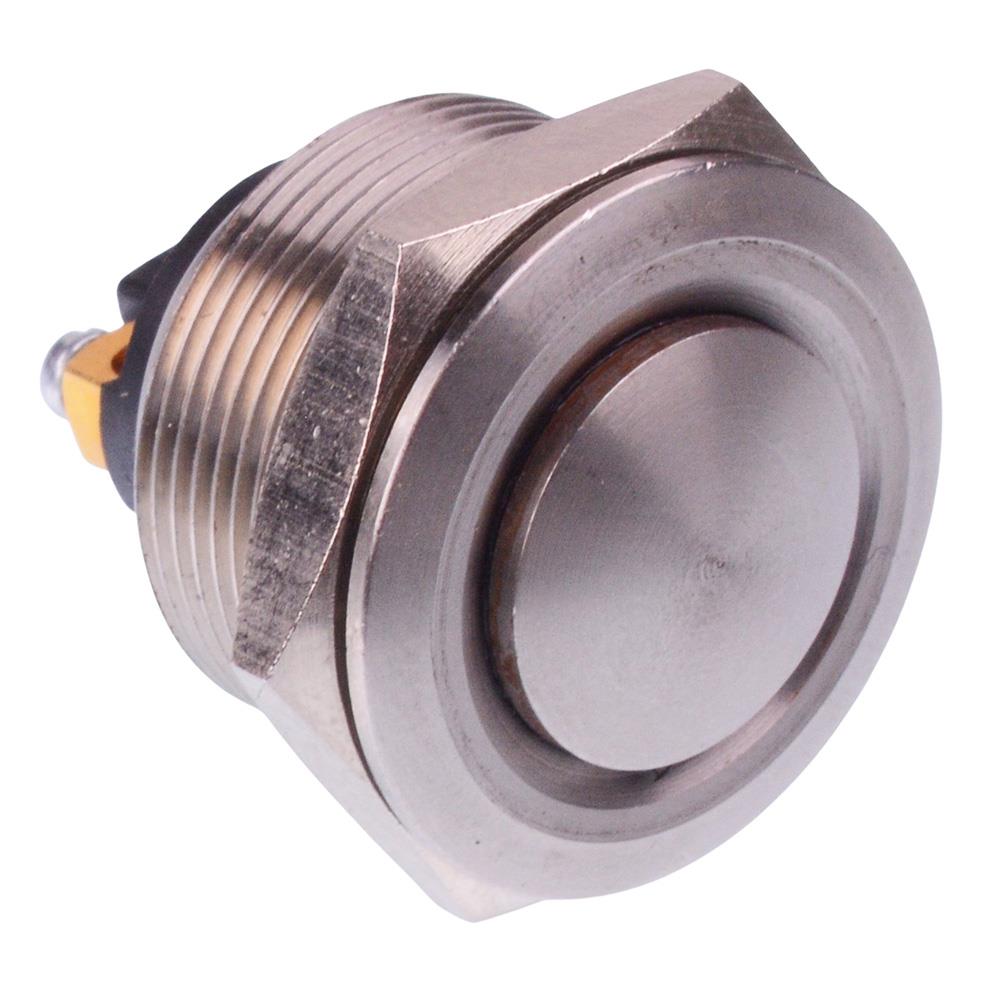

Off-(On) Momentary 22mm Anti Vandal Push Button Switch SPST AV041003D940T

The AV041003D940T is a momentary 22mm anti-vandal push button switch featuring a curved actuator and screw terminals. The switch features SPST contacts and stainless steel body making it suitable for a wide range of applications.

  • Off-(On) momentary function
  • SPST contacts
  • Panel cut-out: 22.2mm
  • Screw terminals
  • Stainless steel body
  • Rating: 2A 48VDC

    • AV041003D940T Off-(On) Momentary 22mm Anti Vandal Push Button Switch SPST
