Red 19mm Momentary NO Vandal Push Button Switch SPST AV09C703D940KX2541-3

Red 19mm Momentary NO Vandal Push Button Switch SPST AV09C703D940KX2541-3
Red 19mm Momentary NO Vandal Push Button Switch SPST AV09C703D940KX2541-3
0 reviews - Write a review
from
$64.12
Ex Tax: $64.12
5 or more $57.07
10 or more $53.21
25 or more $50.01
50 or more $47.44
  • Stock: In Stock
  • Model: SCJ013880
  • SKU: SCJ013880
Products Sold: 0
Product Views: 447
Add to Cart
Buy Now Ask a question
Add to Wish List Compare this Product
Add to Cart
Buy Now
  • Specifications
Attributes List
ActuationMomentary
MOQ1
ColourRed
Contact ConfigurationSPST
Contact MaterialGold Plated Brass
Contact Rating50mA 24VDC
Current Rating0.05A
IlluminatedNo
MaterialStainless Steel
Mounting StylePanel
Number of Poles1
Number of Positions2
Protection LevelIP65
Operating Temperature-30°C to +70°C
Panel Cut Out19.2mm
Panel Thickness1-6mm
Product SeriesAV
Switch OperationOff-(On)
Terminal TypeScrew
Voltage Rating24VDC
  • Description

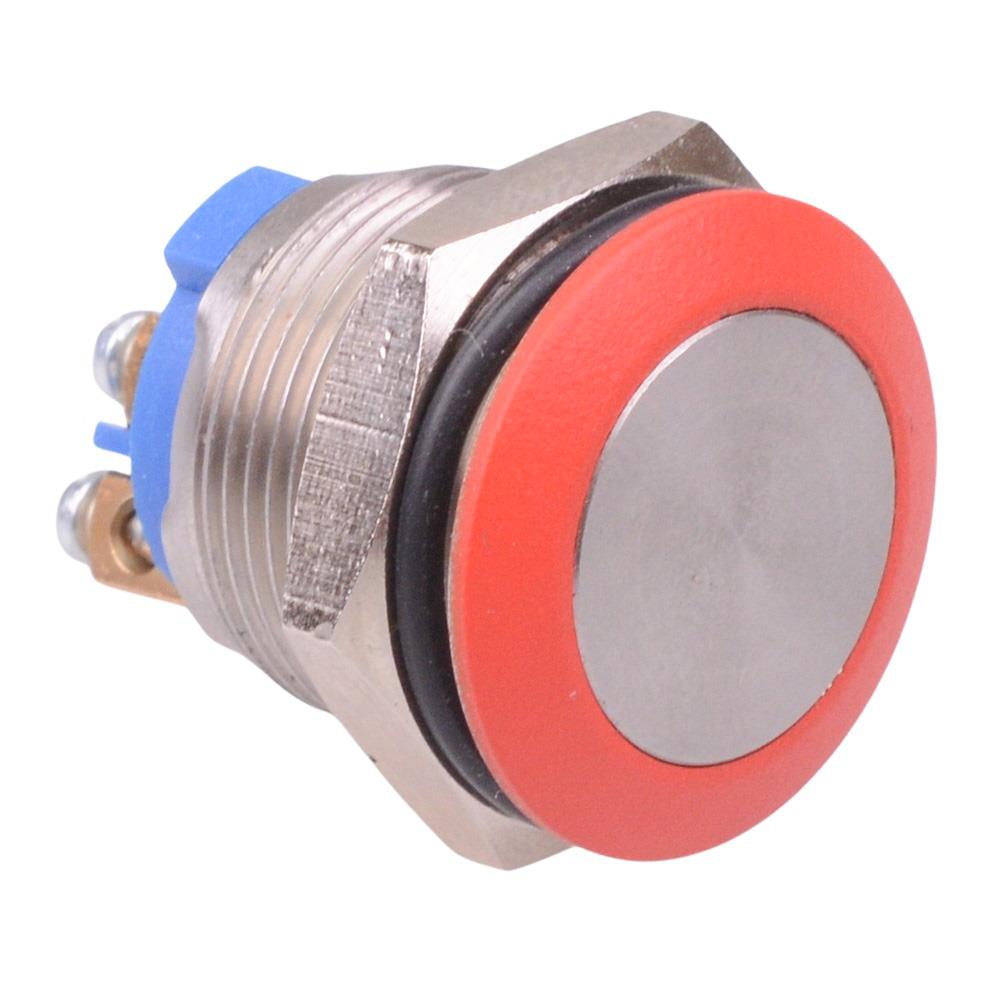

Red 19mm Momentary NO Vandal Push Button Switch SPST AV09C703D940KX2541-3

The AV09C703D940KX2541-3 is a red 19mm momentary anti vandal push button switch featuring SPST contacts and screw terminals. The switch features a stainless steel body and is suitable for a wide range of applications.

  • Off-(On) momentary function
  • SPST contacts
  • Stainless steel body
  • Tactile feedback
  • Panel cut-out: 19.2mm
  • Panel thickness: 1-6mm
  • Screw terminals
  • Rating: 50mA 24VDC
  • IP65 front panel sealing

    • AV09C703D940KX2541-3 Red 19mm Momentary NO Vandal Push Button Switch SPST
