Black Off-(On) Momentary Push Button Switch SPST

Black Off-(On) Momentary Push Button Switch SPST 1

Buy Now

Specifications

Attributes List
Actuation	Momentary
Colour	Black
Contact Configuration	SPST
Contact Rating	3A 125VAC, 1.5A 250VAC
Current Rating	3A @ 125VAC
Illuminated	No
Electrical Life	50,000 Cycles
Illumination Colour	Non Illuminated
Mounting Style	Panel
Number of Positions	2
Operating Temperature	-25°C to +85°C
Panel Cut Out	15mm
Switch Operation	Off-(On)
Terminal Type	Quick Connect
Voltage Rating	250VAC

Description

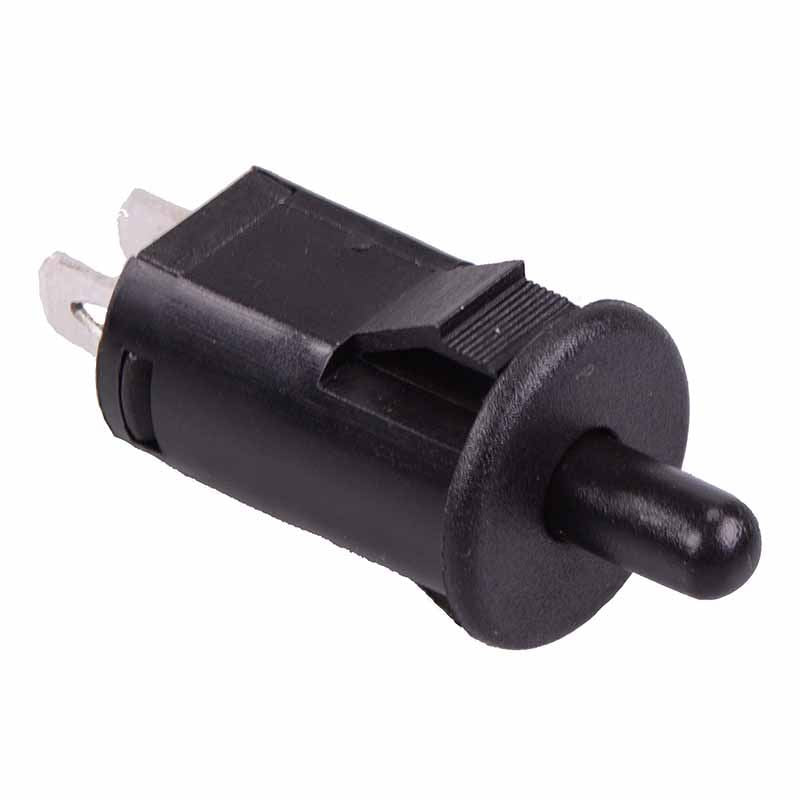

Black Off-(On) Momentary Push Button Switch SPST

Push button switch featuring a black actuator and Off-(On) momentary push to make action, suitable for a range of door applications including fridges.

Off-(On) momentary action

SPST contacts

Rating: 3A 125VAC, 1A 250VAC

Quick connect 4.8mm terminals

Panel cut-out: 15mm

Dimensions: 39 x 17mm (Height x Diameter)

Actuator dimensions: 10mm x 5.2mm (Height x Diameter)
