Black On-Off Latching Large Button Push Switch SPST R13-512B2-05

Black On-Off Latching Large Button Push Switch SPST R13-512B2-05 1

Buy Now

Specifications

Attributes List
Actuation	Latching
Colour	Black
Contact Configuration	SPST
Contact Rating	1.5A 250VAC
Current Rating	1.5A
Illuminated	No
Illumination Colour	Non Illuminated
Mounting Style	Panel
Number of Positions	2
Panel Cut Out	7mm
Switch Operation	On-Off
Terminal Type	Solder
Voltage Rating	250VAC

Description

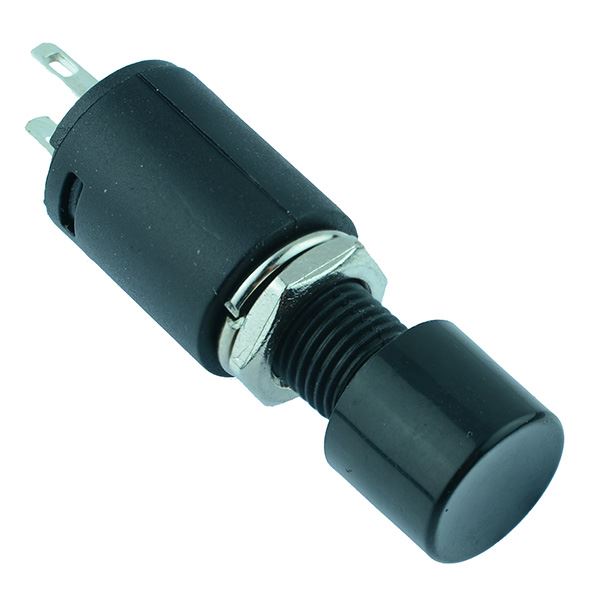

Black On-Off Latching Large Button Push Switch SPST R13-512B2-05

R13-512B2 panel mount SPST On-Off push button latching switch featuring a large black actuator, solder contacts, suitable for a wide range of low power applications.

On-off operation

SPST contacts

Silver plated brass contacts

7mm panel cut-out

4mm maximum panel thickness

10mm diameter button

Dimensions: 40.5 x 11.5 (Length x Diameter)

Download
