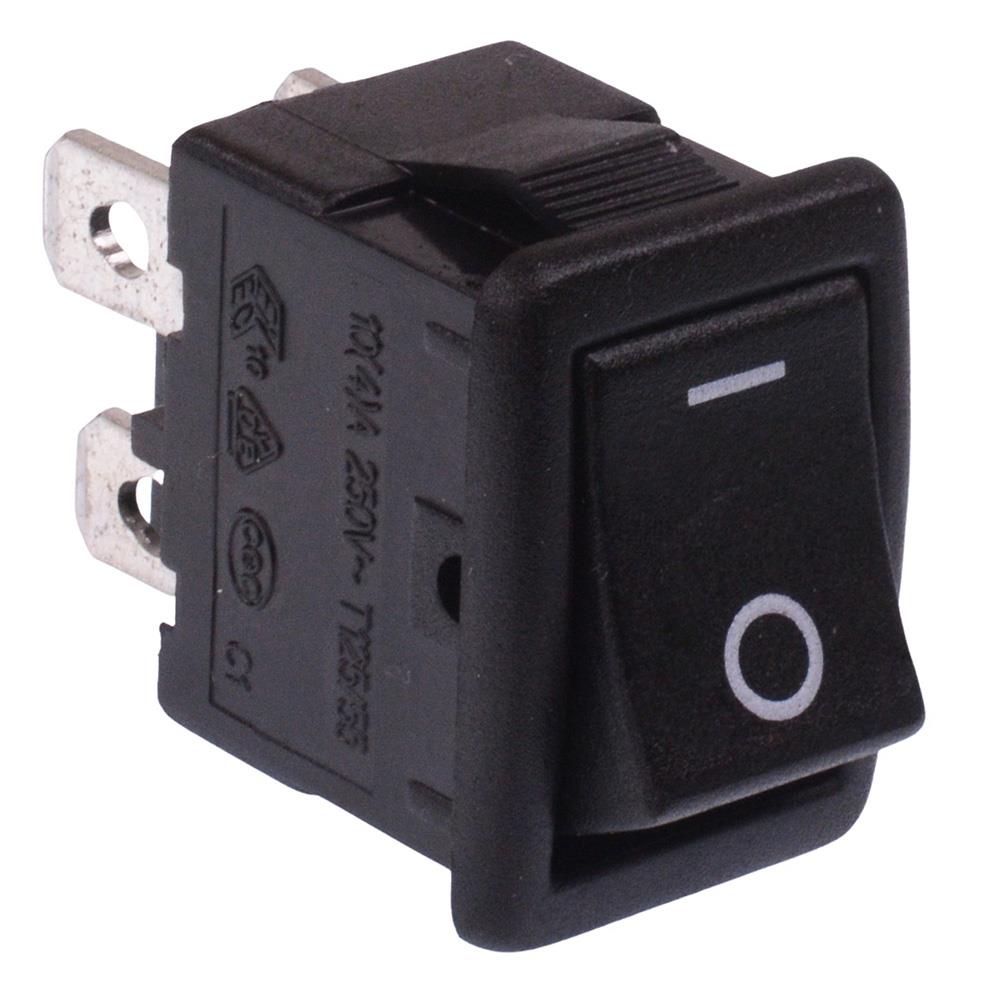

Black On-Off Rectangle Rocker Switch 19.2 x 13mm DPST 10A

Buy Now

Specifications

Attributes List
Actuation	Latching
Contact Configuration	DPST
Contact Material	Silver Alloy
Contact Rating	6A 250VAC
Current Rating	10A
Illuminated	No
Electrical Life	10,000 Cycles
Material	PA66
Mounting Style	Panel
Number of Poles	2
Operating Temperature	-20°C to +85°C
Panel Cut Out	19.2 x 13mm
Panel Thickness	0.75-3mm
Switch Operation	On-Off
Terminal Type	Quick Connect
Voltage Rating	250VAC

Description

Black On-Off Rectangle Rocker Switch 19.2 x 13mm DPST 10A

Black On-Off rocker switch featuring a 19.2 x 13mm panel cut-out and SPST contacts. The switch features a 10A 250VAC rating and quick connect terminals, suitable for a wide range of applications.

SPST contacts

On-Off function

Rating: 6A 250VAC, 10A 125VAC

Panel cut-out: 19.2 x 13mm

Diameter: 21 x 15mm

4.8mm quick connect terminals
