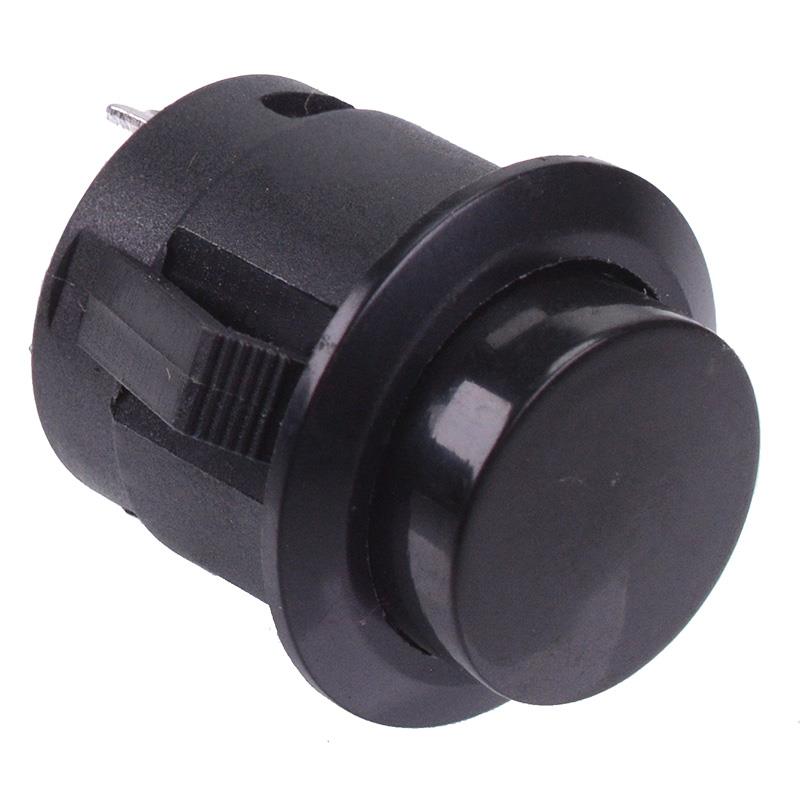

Black Push-Fit 16mm Momentary Off-(On) Push Button Switch 3A SPST

Black Push-Fit 16mm Momentary Off-(On) Push Button Switch 3A SPST 1

Buy Now

Specifications

Attributes List
Actuation	Momentary
Colour	Black
Contact Configuration	SPST
Contact Rating	3A 250VAC
Current Rating	3A
Illuminated	No
Electrical Life	10,000 Cycles
Illumination Colour	Non Illuminated
Mounting Style	Panel
Number of Positions	2
Operating Force	200gf
Operating Temperature	-25°C to +85°C
Panel Cut Out	16mm
Switch Operation	Off-(On)
Terminal Type	Solder
Voltage Rating	250VAC

Description

Black Push-Fit 16mm Momentary Off-(On) Push Button Switch 3A SPST

Black momentary push fit switch featuring Off-(On) action and SPST contacts. The switch requires a 16mm panel cut-out and is easy to install making it suitable for a wide range of applications.

Off-(On) action

SPST contacts

16mm panel cut-out diameter

Push-fit panel mounting

Rating: 3A 250VAC

Dimensions: 26.5 x 19mm (Height x Diameter)
