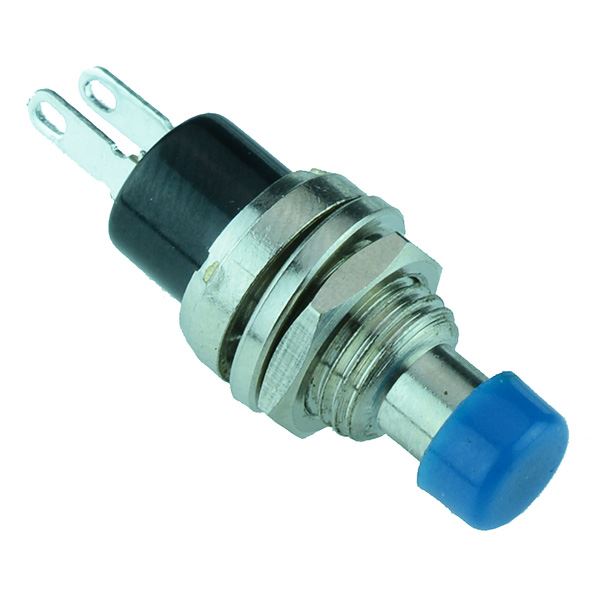

Blue Off-(On) Miniature Metal Push Button Switch SPST

Blue Off-(On) Miniature Metal Push Button Switch SPST 1

Buy Now

Specifications

Attributes List
Actuation	Momentary
Colour	Blue
Contact Configuration	SPST
Contact Rating	0.5A 250VAC
Current Rating	0.5A
Illuminated	No
Illumination Colour	Non Illuminated
Mounting Style	Panel
Number of Positions	2
Operating Temperature	-25°C to +85°C
Panel Cut Out	7mm
Switch Operation	Off-(On)
Terminal Type	Solder
Voltage Rating	250VAC

Description

Blue Off-(On) Miniature Metal Push Button Switch SPST

Blue miniature push button switch featuring a push to make operation and metal housing, suitable for applications where a reliable but small size switch is required.

Momentary switch action

Off-(On) SPST contacts

7mm panel cut-out diameter

Suitable for panel mounting

Dimensions: 27.3 x 9.8mm (Height x Diameter)

Maximum Panel Thickness: 2mm
