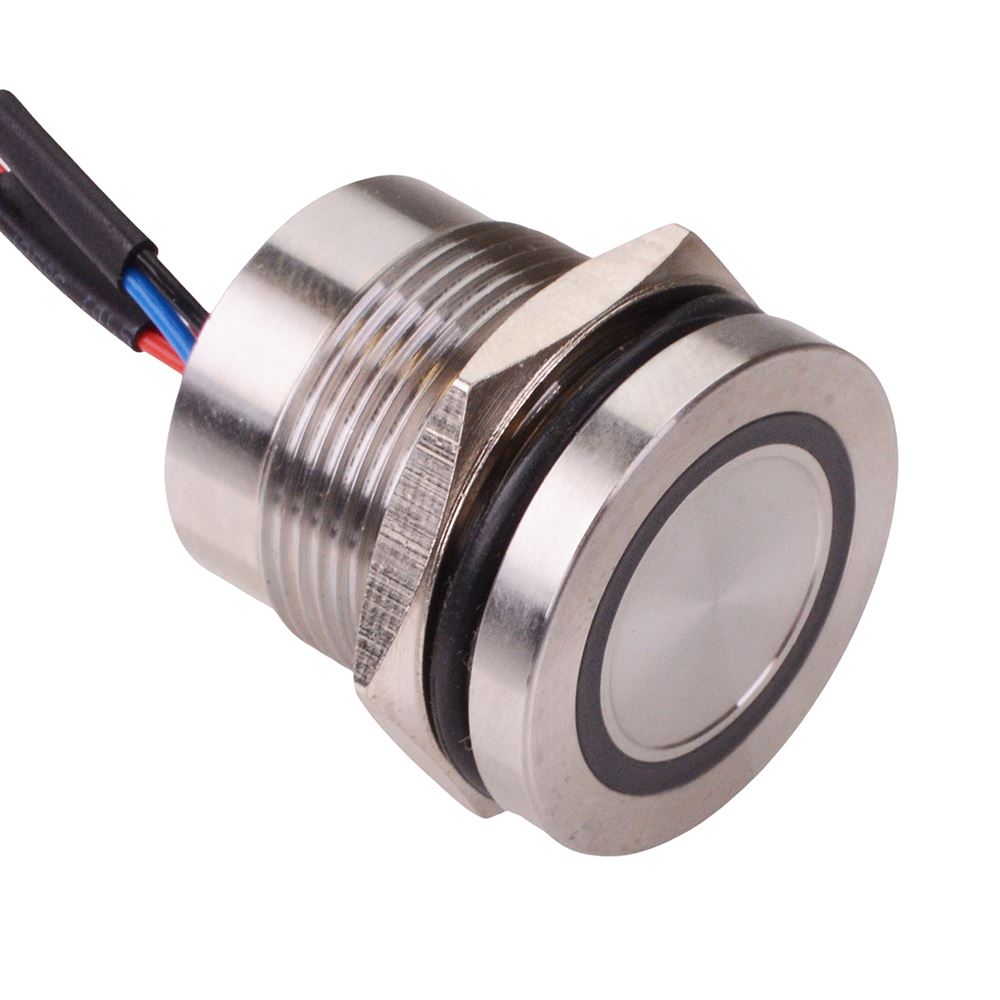

Blue Ring 24V LED Off-(On) 19mm Metal Momentary Piezo Switch NO SPST
from
$25.07
Ex Tax: $25.07
5 or more $22.31
10 or more $20.80
25 or more $19.55
50 or more $18.55
- Stock: In Stock
- Model: SCJ010313
- SKU: SCJ010313
Products Sold: 0
Product Views: 519
Ask a Question About This Product
- Specifications
| Attributes List | |
| Actuation | Momentary |
| Colour | Blue |
| Contact Configuration | SPST |
| Contact Rating | 0.2A 24V |
| Current Rating | 0.2A |
| Illuminated | Yes |
| Electrical Life | 50,000,000+ Cycles |
| Illumination Colour | Blue |
| Illumination Voltage | 24VDC |
| Material | Aluminium |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Protection Level | IP68 |
| Operating Temperature | -40°C to +75°C |
| Panel Cut Out | 19mm |
| Switch Operation | Off-(On) |
| Terminal Type | Flying Leads |
| Voltage Rating | 24VDC |
- Description
Blue LED momentary piezo switch featuring a sealed and vandal proof design providing solid state switching. The switch has a life expectancy of over 50 million cycles and is ideal for demanding applications where reliability is critical.
NO momentary function Blue LED 24VDC illumination 19mm panel cut-out diameter 3mm height flat operator 22mm diameter head Flying leads Rating: 200mA 24VAC/DC
