DPDT Changeover Push Button Latching Switch

Buy Now

Specifications

Attributes List
Actuation	Latching
Contact Configuration	DPDT
Contact Rating	0.3A 30VDC
Current Rating	0.3A
Illuminated	No
Illumination Colour	Non Illuminated
Mounting Style	PCB
Number of Positions	2
Operating Force	250gf
Operating Temperature	-20°C to +85°C
Terminal Type	Through Hole
Voltage Rating	30VDC

Description

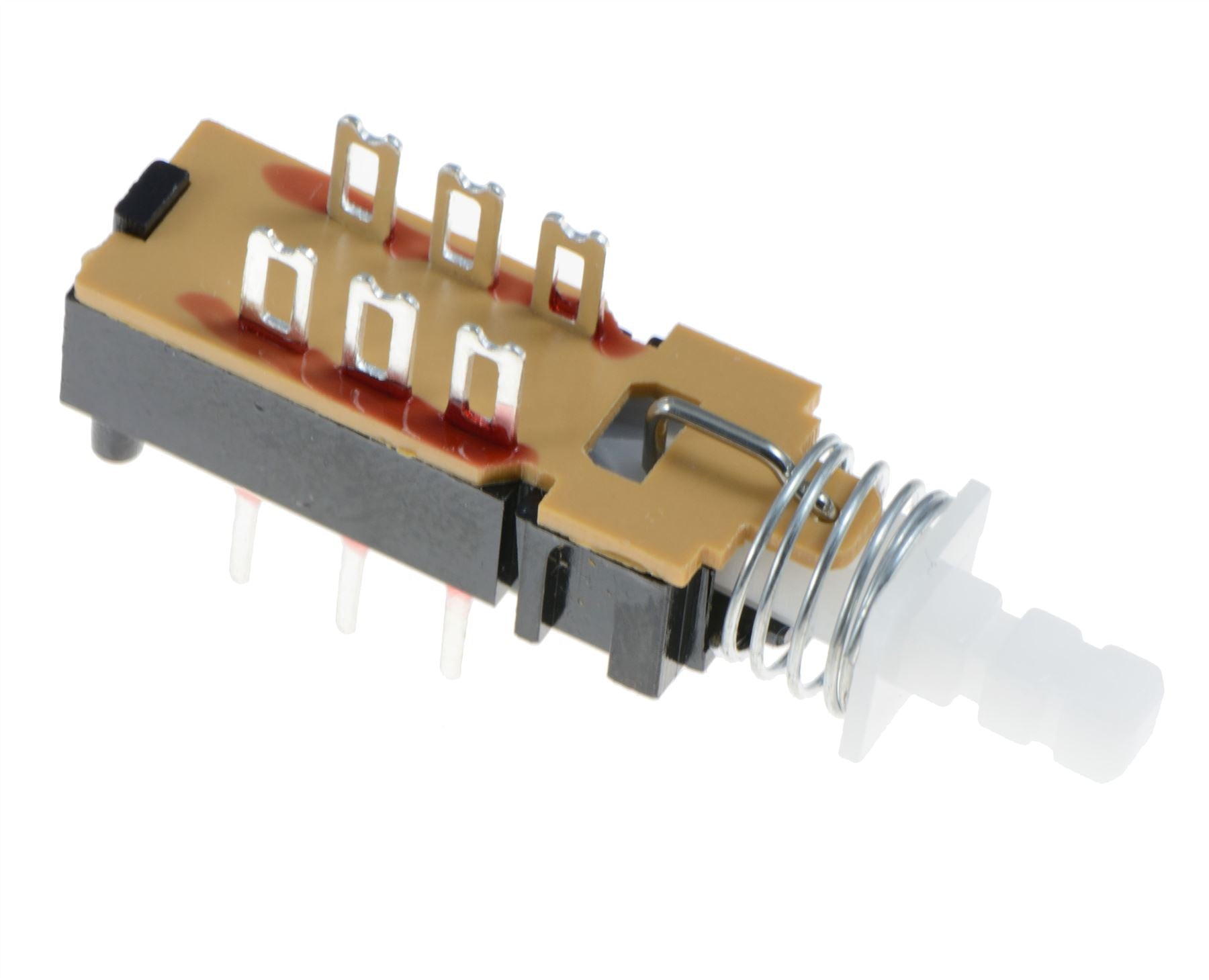

DPDT Changeover Push Button Latching Switch
Latching push button switch with DPDT contacts. The switch has PCB terminals underneath and solder terminals on the top, making them suitable for a wide range of applications.

DPDT contacts

PCB terminals underneath and solder terminals on the top

3.3 x 3.3mm square button size

Dimensions: 43 x 17.5 x 9mm (Length x Height x Width)
