Black Momentary NO Round 16mm Push Button Switch SPST IP54 IQR3F422X1171-127

Black Momentary NO Round 16mm Push Button Switch SPST IP54 IQR3F422X1171-127 1

Buy Now

Specifications

Attributes List
Actuation	Momentary
MOQ	1
Colour	Black
Contact Configuration	SPST
Contact Material	Gold Plated Silver
Contact Rating	200mA 48VDC
Current Rating	0.2A
Illuminated	No
Material	PA66
Mounting Style	Panel
Number of Poles	1
Number of Positions	2
Protection Level	IP54
Operating Force	4N
Operating Temperature	-40°C to +85°C
Panel Cut Out	15.9mm
Panel Thickness	2.2mm
Product Series	IQ
Switch Operation	Off-(On)
Terminal Type	Flying Leads
Voltage Rating	48VDC

Description

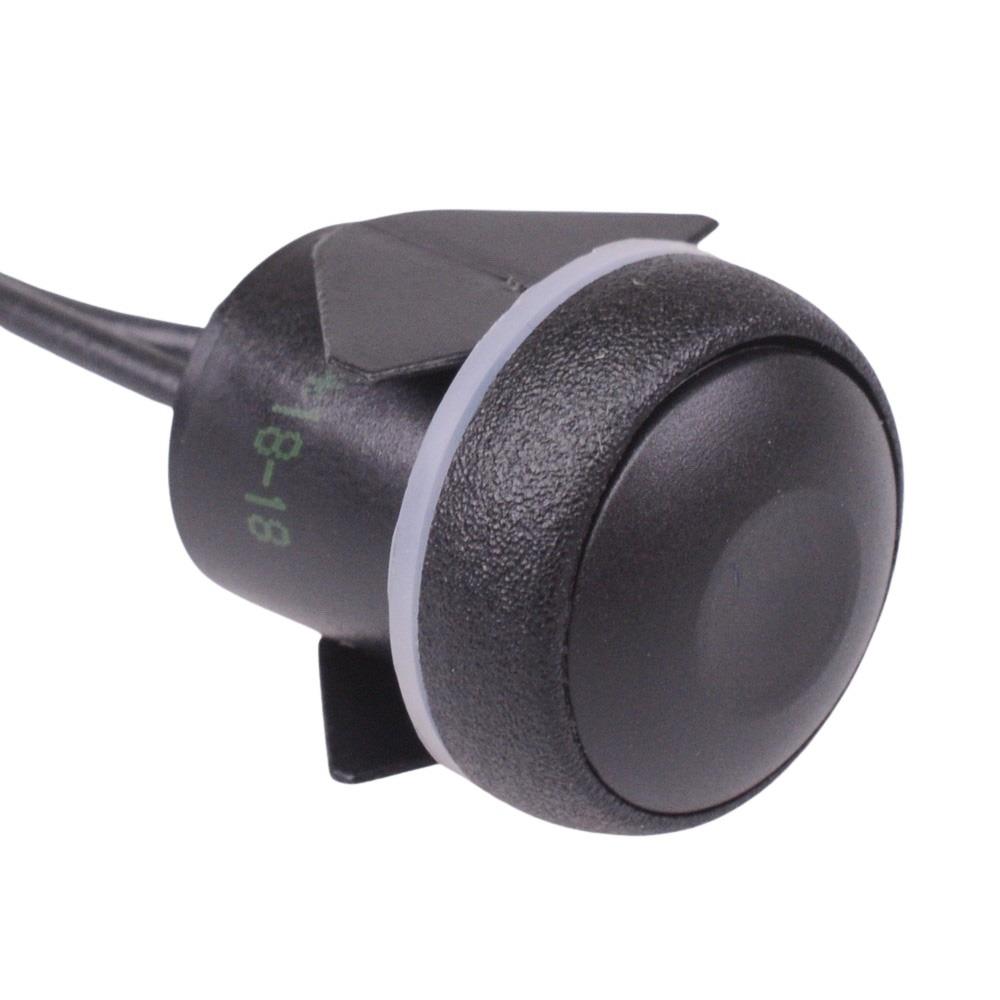

Black Momentary NO Round 16mm Push Button Switch SPST IP54 IQR3F422X1171-127

The IQR3F422X1171-127 is a round sealed push button switch by socoje, featuring NO momentary contacts and 16mm bushing. The switch features snap-in mounting for easy installation and tactile feedback when pressed. The switch is suitable for a wide range of panel mount applications including automotive and industrial.

Snap-in mounting

Tactile feedback

Sealed to IP54

Rating: 200mA 48VDC

Panel thickness: 2.2mm max

Panel cut-out: 15.9mm

500mm flying leads

Gold plated silver contacts
