Orange Square 16mm Momentary Push Button Switch SPDT 5A IP67 IRC7Z292
from
$10.30
Ex Tax: $10.30
10 or more $9.17
25 or more $8.66
50 or more $8.13
100 or more $7.72
- Stock: In Stock
- Model: SCJ014142
- SKU: SCJ014142
Products Sold: 0
Product Views: 375
Ask a Question About This Product
- Description

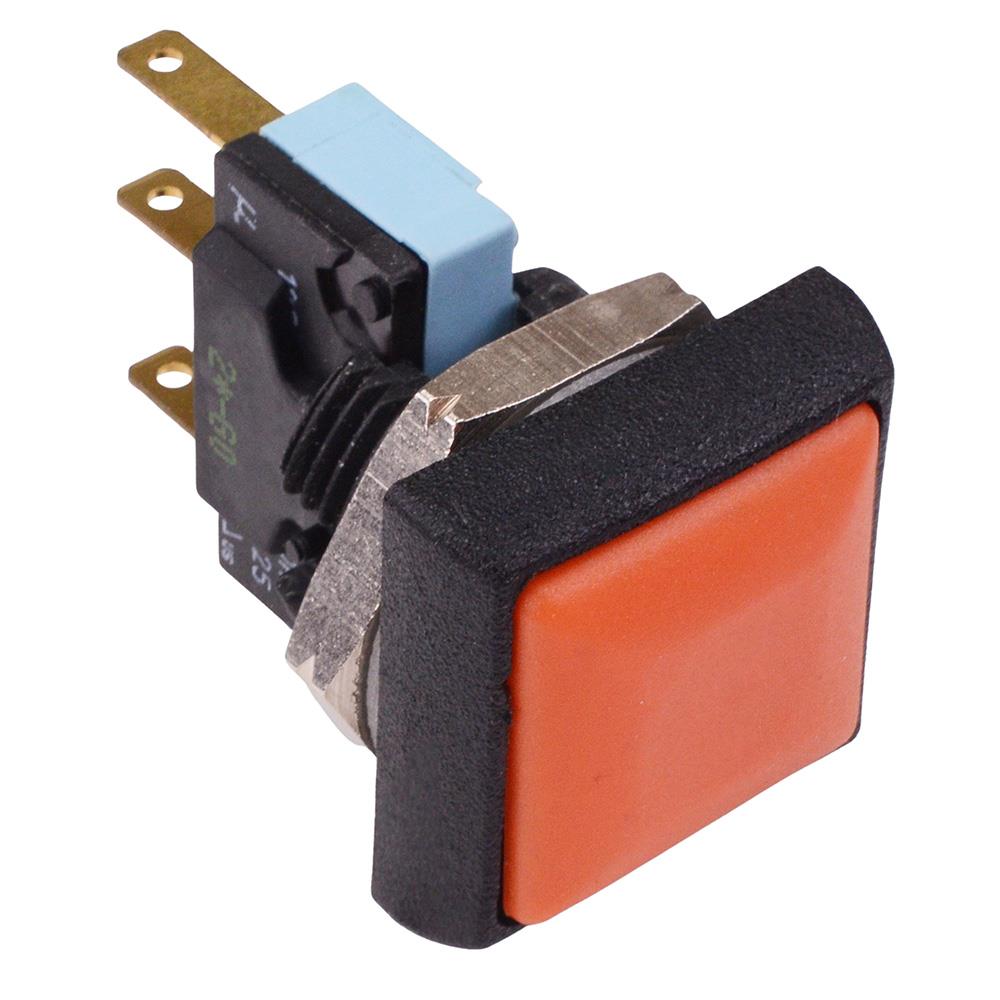

Orange Square 16mm Momentary Push Button Switch SPDT 5A IP67 IRC7Z292
The IRC7Z292 is a square sealed momentary push button switch with a 16mm bushing and normally open/closed contacts. The switch features a removable microswitch providing a maximum rating of 5A 250VAC. This makes the switch ideal for applications including automotive and marine.
Button colour: orange Panel cut-out: 16.2mm Contacts: momentary NO + NC Terminals:quick connect / solder lug contacts Contact rating: 5A 250VAC Protection rating: IP67 Maximum panel thickness: 3mm Dimensions: 19.8 x 19.8 x 33.6mm (length x width x height)
