Red LED Red Button Round 16mm Momentary Push Button Switch SPDT 5A IP67 IRR7Z262L0S
from
$18.06
Ex Tax: $18.06
10 or more $16.07
25 or more $15.17
50 or more $14.26
100 or more $13.54
- Stock: In Stock
- Model: SCJ014172
- SKU: SCJ014172
Products Sold: 0
Product Views: 407
Ask a Question About This Product
- Description

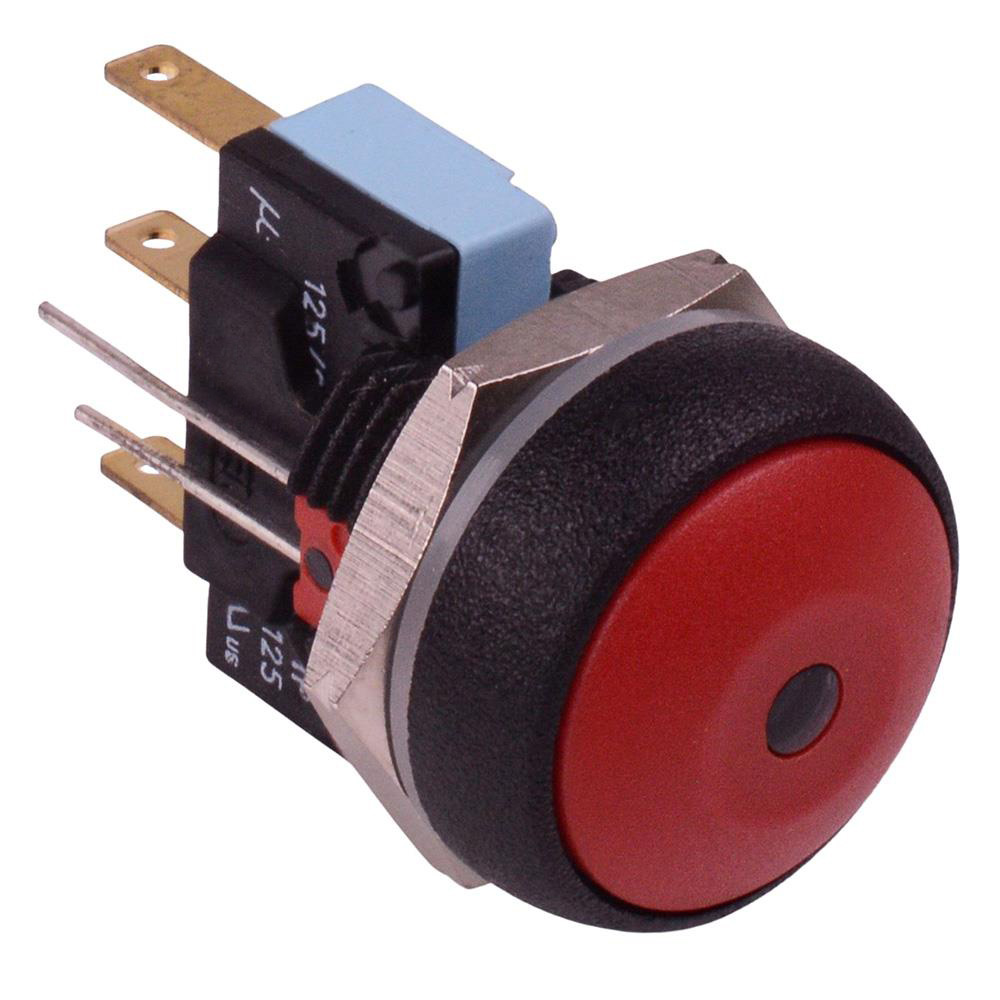

Red LED Red Button Round 16mm Momentary Push Button Switch SPDT 5A IP67 IRR7Z262L0S
The IRR7Z262L0S is a round sealed momentary push button switch with a 16mm bushing and normally open/closed contacts. The switch features a removable microswitch providing a maximum rating of 5A 250VAC. This makes the switch ideal for applications including automotive and marine.
Button colour: red LED colour: red LED forward voltage: 2.1V LED forward current: 20mA Panel cut-out: 16.2mm Contacts: momentary NO + NC Terminals:quick connect / solder lug contacts Contact rating: 5A 250VAC Protection rating: IP67 Maximum panel thickness: 3mm Dimensions: 19.8 x 33.6mm (diameter x height)
