Blue LED Round 16mm Momentary NO/NC Push Button Switch SPDT 5A IP67 IRR7Z2B2L0B
from
$28.09
Ex Tax: $28.09
10 or more $25.00
25 or more $23.59
50 or more $22.20
100 or more $21.06
- Stock: In Stock
- Model: SCJ014299
- SKU: SCJ014299
Products Sold: 0
Product Views: 438
Ask a Question About This Product
- Description

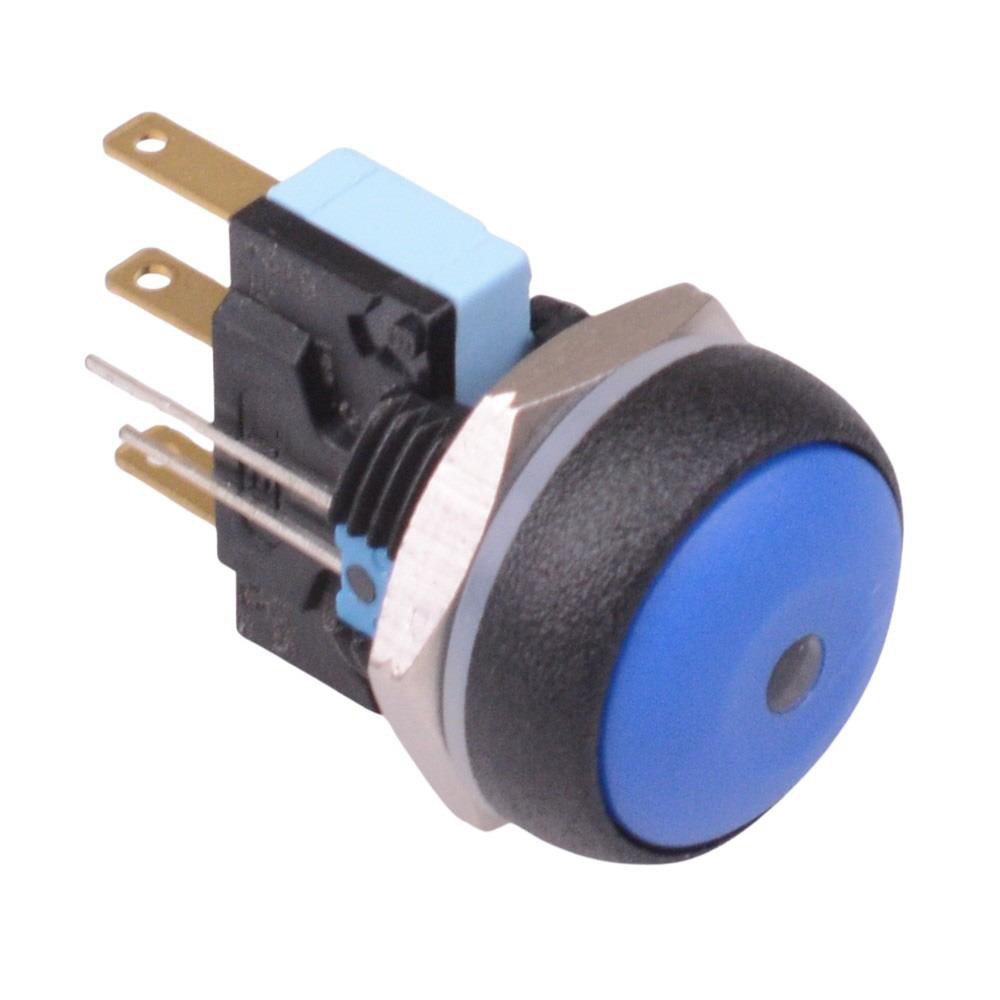

Blue LED Round 16mm Momentary NO/NC Push Button Switch SPDT 5A IP67 IRR7Z2B2L0B
The IRR7Z2B2L0B is a round sealed momentary push button switch with a 16mm bushing and NO/NC contacts. The switch features a removable microswitch providing a maximum rating of 5A 250VAC. This makes the switch ideal for applications including automotive and marine.
Button colour: dark blue LED colour: blue LED forward voltage: 3.2V LED forward current: 20mA Panel cut-out: 16.2mm Contacts: NO/NC Terminals: quick connect / solder lug contacts Silver contacts Contact rating: 5A 250VAC Protection rating: IP67 Maximum panel thickness: 3mm Dimensions: 19.8 x 33.6mm (diameter x height)
