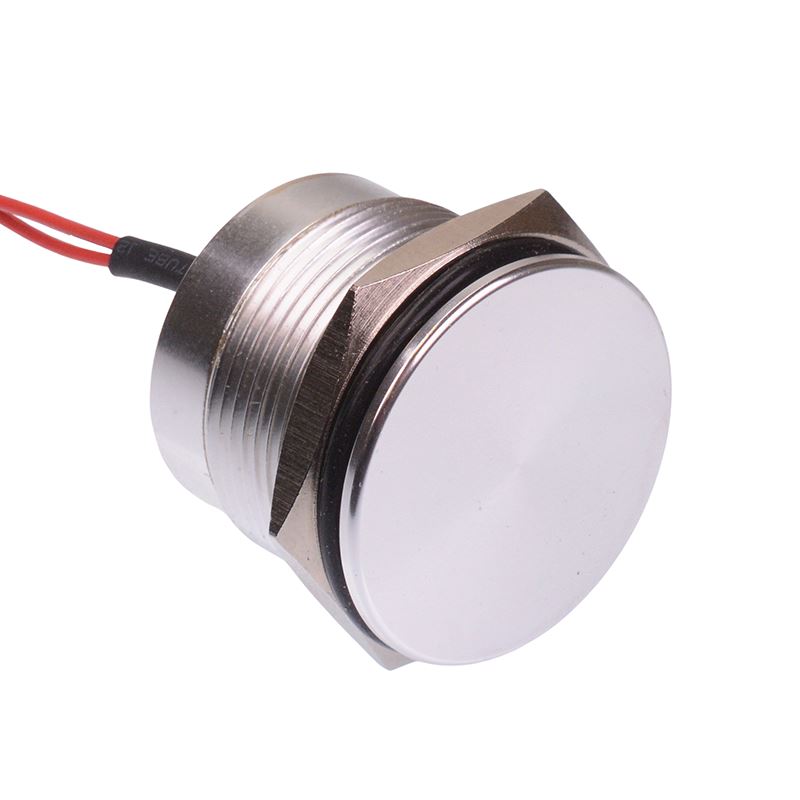

Off-(On) 22mm Metal Momentary Piezo Switch SPST

Off-(On) 22mm Metal Momentary Piezo Switch SPST 1

Buy Now

Specifications

Attributes List
Actuation	Momentary
Contact Configuration	SPST
Contact Rating	0.2A 24VAC/DC
Current Rating	0.2A
Illuminated	No
Electrical Life	50,000,000+ Cycles
Illumination Colour	Non Illuminated
Material	Aluminium
Mounting Style	Panel
Number of Poles	1
Number of Positions	2
Protection Level	IP68
Operating Force	2-6N
Operating Temperature	-40°C to +75°C
Panel Cut Out	22mm
Switch Operation	Off-(On)
Terminal Type	Flying Leads
Voltage Rating	24VAC/DC

Description

22mm momentary piezo switch featuring a sealed and vandal proof design providing solid state switching. The switch has a life expectancy of over 50 million cycles and is ideal for demanding applications where reliability is critical.

NO momentary function

22mm panel cut-out diameter

1.3mm height flat operator

25mm diameter head

Flying leads

Rating: 200mA 24VAC/DC
