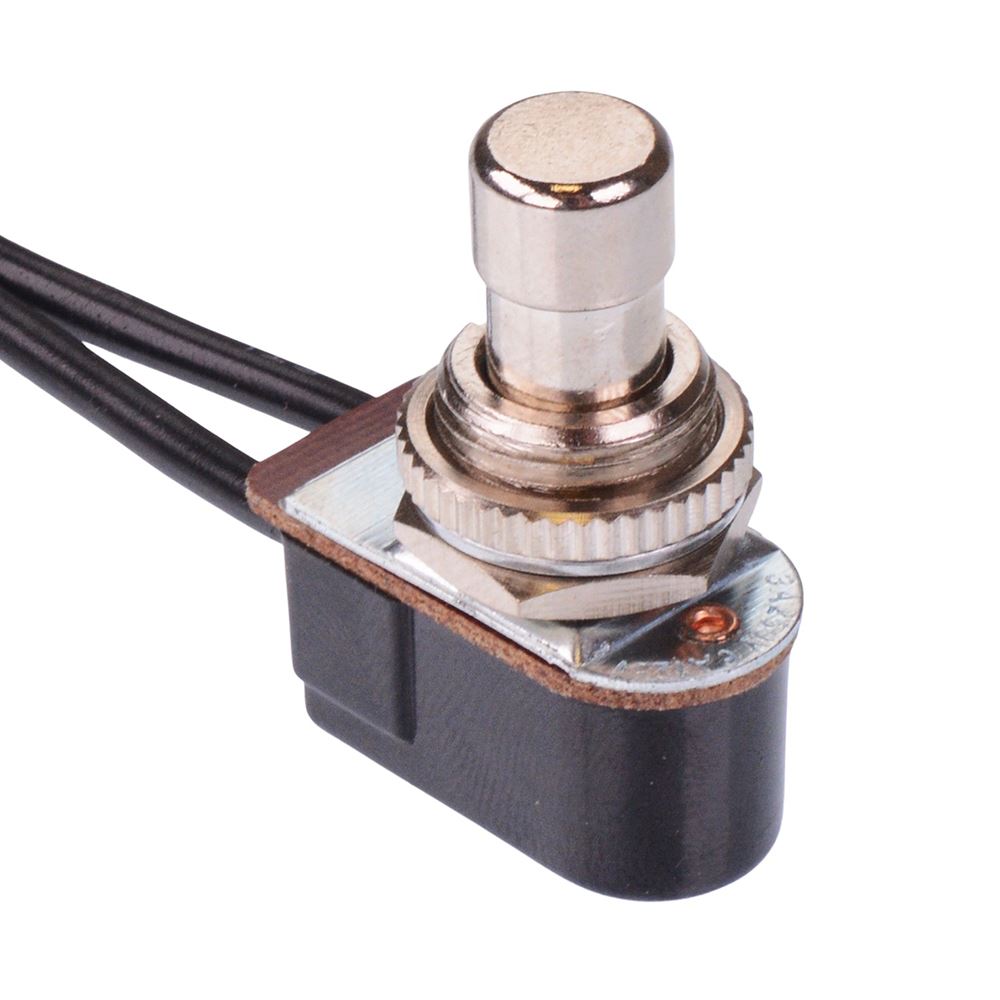

Off-(On) Momentary Prewired Foot Switch SPST

Buy Now

Specifications

Attributes List
Actuation	Momentary
Contact Configuration	SPST
Contact Rating	6A 125VAC, 3A 250VAC
Current Rating	6A @ 125VAC
Electrical Life	20,000 Cycles
Illumination Colour	Non Illuminated
Number of Poles	1
Number of Positions	2
Operating Force	24N
Operating Temperature	-25°C to +80°C
Panel Cut Out	12mm
Switch Operation	Off-(On)
Terminal Type	Flying Leads
Voltage Rating	250VAC

Description

Off-(On) Momentary Prewired Foot Switch SPST

Prewired soft touch foot switch featuring SPST contacts and momentary operation. The switch is easy to install and features a 3A 250V rating, suitable for guitar applications.

Off-(On) momentary operation

SPST contacts

160mm tail leads

12mm panel cut-out

Soft touch operation (no clicking)
