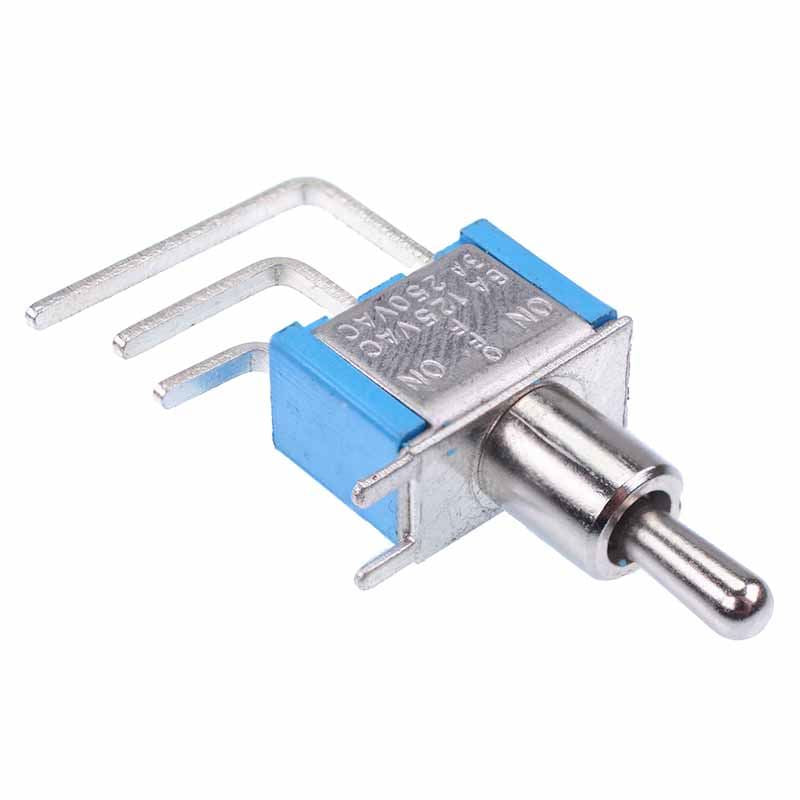

On-Off-On Miniature Vertical PCB Toggle Switch SPDT

Buy Now

Specifications

Attributes List
Actuation	Latching
Contact Configuration	SPDT
Contact Rating	6A 125VAC, 3A 250VAC
Current Rating	6A
Illuminated	No
Electrical Life	10,000 Cycles
Mounting Style	PCB
Number of Poles	1
Number of Positions	3
Operating Temperature	-25°C to +85°C
Pitch	3.8mm
Switch Operation	On-Off-On
Terminal Type	Through Hole
Voltage Rating	250VAC

Description

On-Off-On Miniature Vertical PCB Toggle Switch SPDT

Mini On-Off-On toggle switch featuring SPDT contacts and a compact size, suitable for mounting vertically directly to a PCB.

On-Off-On action

SPDT contacts

Solder PCB terminals

Rating: 6A 125VAC, 3A 250VAC

Terminal pitch: 3.8mm

Dimensions: 35 x 7.9 x 16.4mm (Length x Width x Height)
