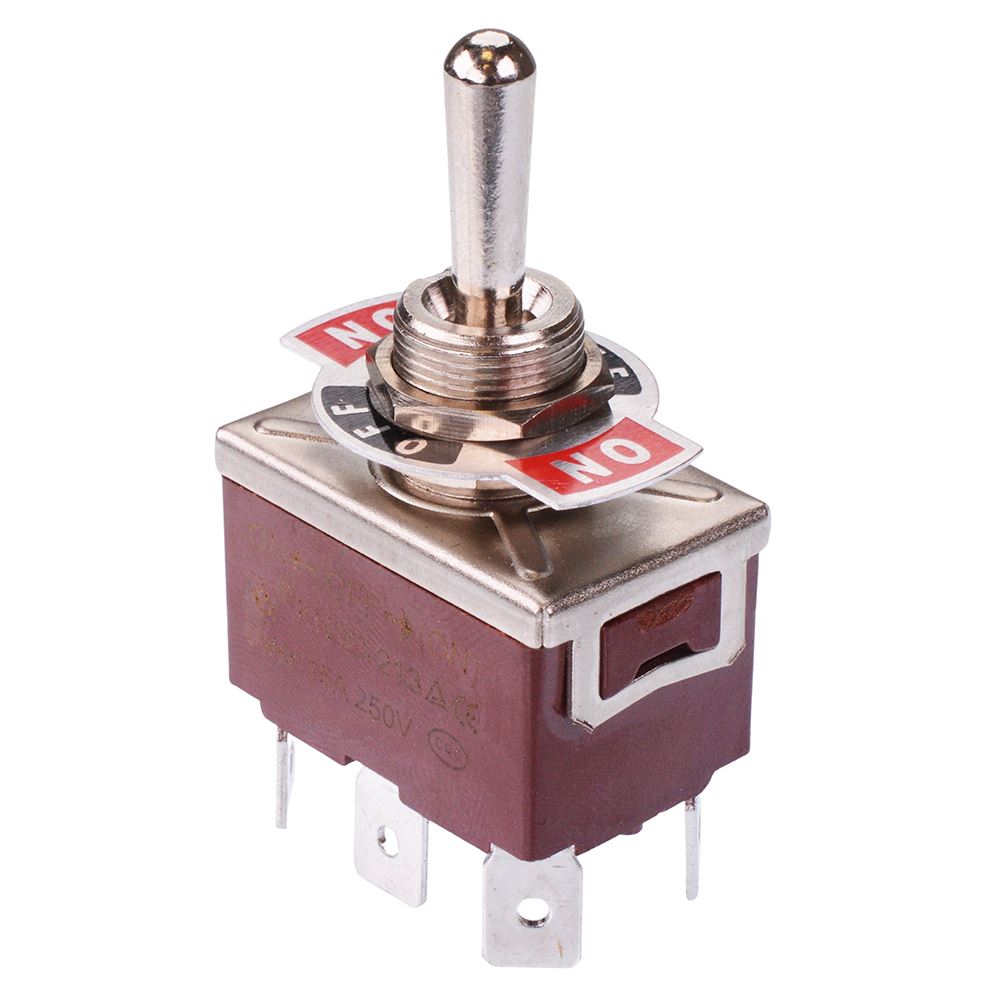

On-Off-(On) Momentary Toggle Switch DPDT 15A 250VAC

Buy Now

Specifications

Attributes List
Actuation	Latching / Momentary
Contact Configuration	DPDT
Contact Rating	3A 250VAC
Current Rating	15A
Illuminated	No
Electrical Life	100,000 Cycles
Mounting Style	Panel
Number of Poles	2
Number of Positions	3
Operating Temperature	-25°C to +80°C
Panel Cut Out	12mm
Switch Operation	On-Off-(On)
Terminal Type	Quick Connect
Voltage Rating	250VAC

Description

On-Off-(On) Momentary Toggle Switch DPDT 15A 250VAC

Standard size toggle switch featuring On-Off-(On) momentary operation and DPDT contacts. The switch provides a reliable mechanism and is suitable for 12mm panel mount applications.

On-Off-(On) operation, () indicates momentary position

DPDT contacts

Rating: 10A 250VAC, 15A 125VAC

6.35mm quick connect terminals

Panel cut-out: 12mm
