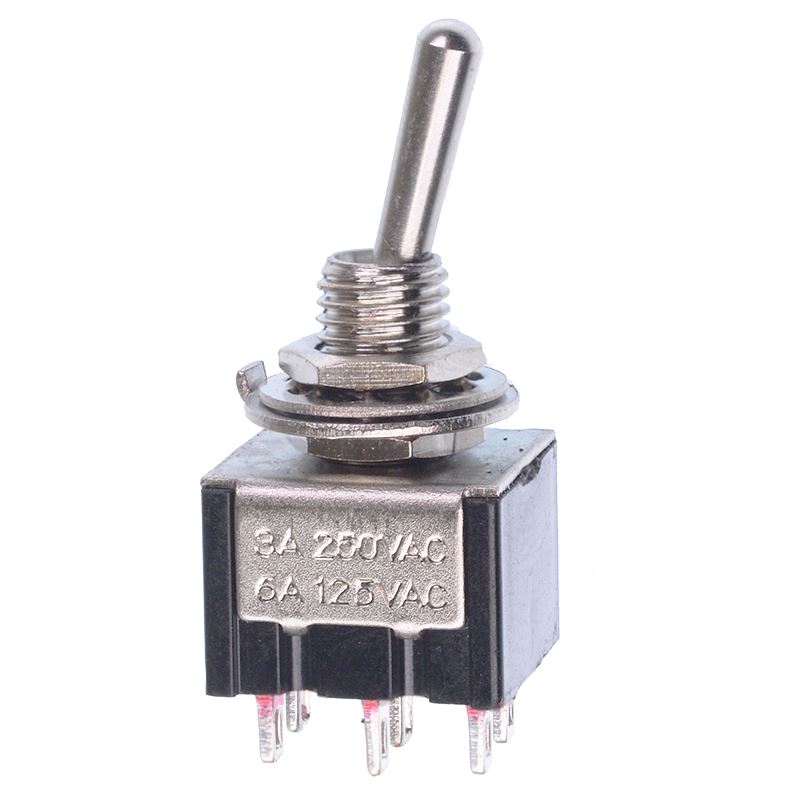

On-On Miniature Toggle Switch DPDT

On-On Miniature Toggle Switch DPDT 1

Buy Now

Specifications

Attributes List
Actuation	Latching
Contact Configuration	DPDT
Contact Rating	3A 250VAC
Current Rating	3A
Illuminated	No
Electrical Life	10,000 Cycles
Mounting Style	Panel
Number of Poles	2
Number of Positions	2
Operating Temperature	-25°C to +85°C
Panel Cut Out	6mm
Switch Operation	On-On
Terminal Type	Solder
Voltage Rating	250VAC

Description

On-On Miniature Toggle Switch DPDT

Miniature size toggle switches suitable for a wide range of applications where a small reliable switch is required.

On-On action

DPDT contacts

6mm panel cut-out

Solder terminals

Secured with nut

Maximum current: 3A

Maximum voltage: 250VAC

Dimensions: 33.3 x 13.2 x 12.7mm (Height x Width x Length)

Maximum Panel Thickness: 3mm
