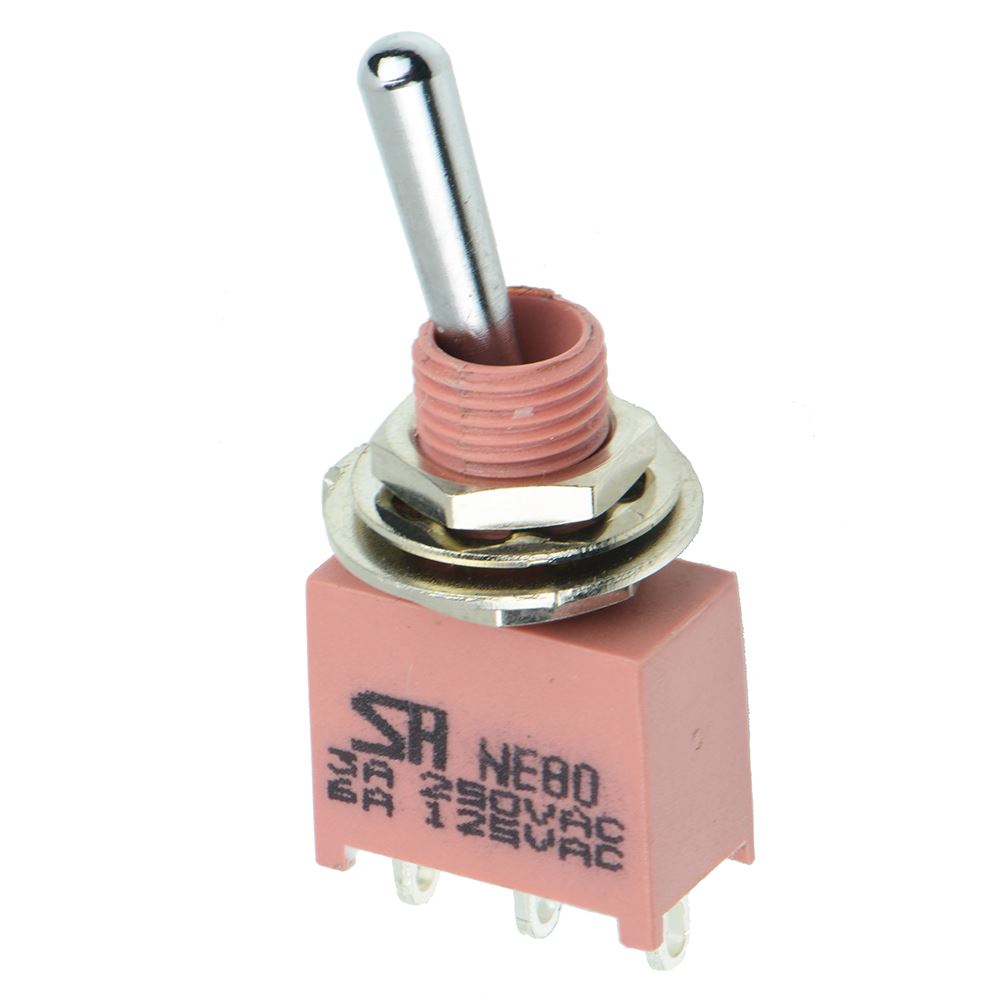

On-On Sealed IP67 Miniature Toggle Switch 6A SPDT

On-On Sealed IP67 Miniature Toggle Switch 6A SPDT 1

Buy Now

Specifications

Attributes List
Actuation	Latching
Colour	Red
Contact Configuration	SPDT
Contact Rating	6A 125VAC/28VDC
Current Rating	6A
Illuminated	No
Electrical Life	50000 Cycles Min
Mounting Style	Panel
Number of Poles	1
Number of Positions	2
Protection Level	IP67
Operating Temperature	-30°C to +85°C
Panel Cut Out	6.35mm
Switch Operation	On-On
Terminal Type	Solder
Voltage Rating	125VAC / 28VDC

Description

On-On Sealed IP67 Miniature Toggle Switch 6A SPDT
On-on sealed miniature toggle switch with SPDT contacts and IP67 protection rating, suitable for panel mounting applications.

Rating: 6A 125VAC / 28VDC

SPDT contacts

Panel cut-out: 6.35mm

Solder terminals

IP67 protection rating

Dimensions: 34.4 x 6.8 x 12.8mm (H x W x L)
