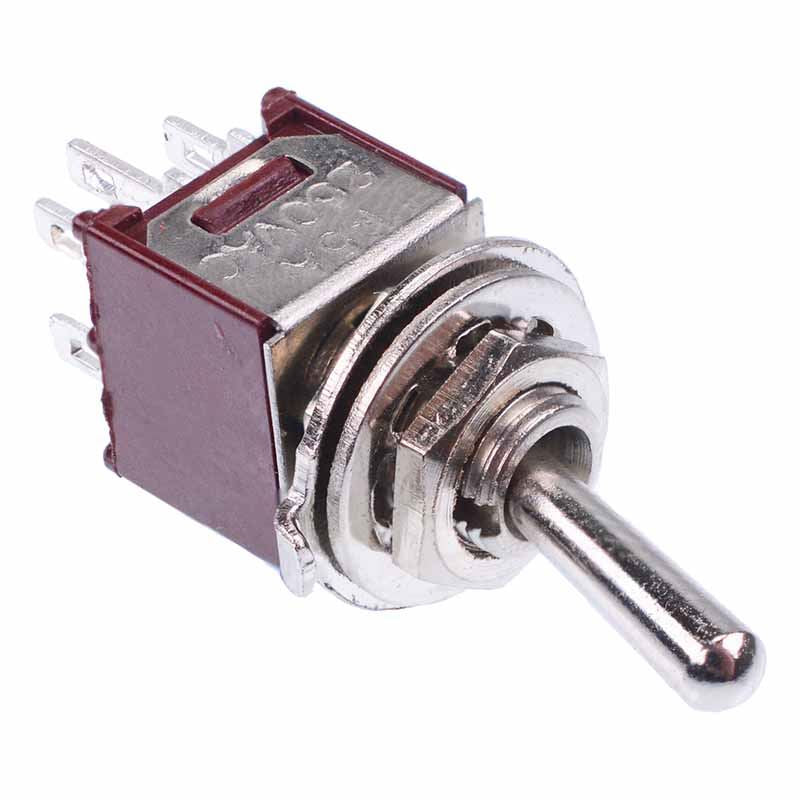

On-On Subminiature Toggle Switch DPDT

On-On Subminiature Toggle Switch DPDT 1

Buy Now

Specifications

Attributes List
Actuation	Latching
Contact Configuration	DPDT
Contact Rating	3A 125VAC, 1.5A 250VAC
Current Rating	3A
Illuminated	No
Electrical Life	10,000 Cycles
Mounting Style	Panel
Number of Poles	2
Number of Positions	2
Operating Temperature	-25°C to +85°C
Panel Cut Out	5mm
Switch Operation	On-On
Terminal Type	Solder
Voltage Rating	250VAC

Description

On-On Subminiature Toggle Switch DPDT

Sub-miniature On-On toggle switch featuring DPDT contacts and a compact size, suitable for a wide range of applications requiring a 2 pole small packaged switch.

On-On action

DPDT contacts

Solder terminals

Rating: 3A 125VAC, 1.5A 250VAC

Panel cut-out: 5mm

Dimensions: 27.3 x 8.2 x 9.2mm (Height x Width x Length)
