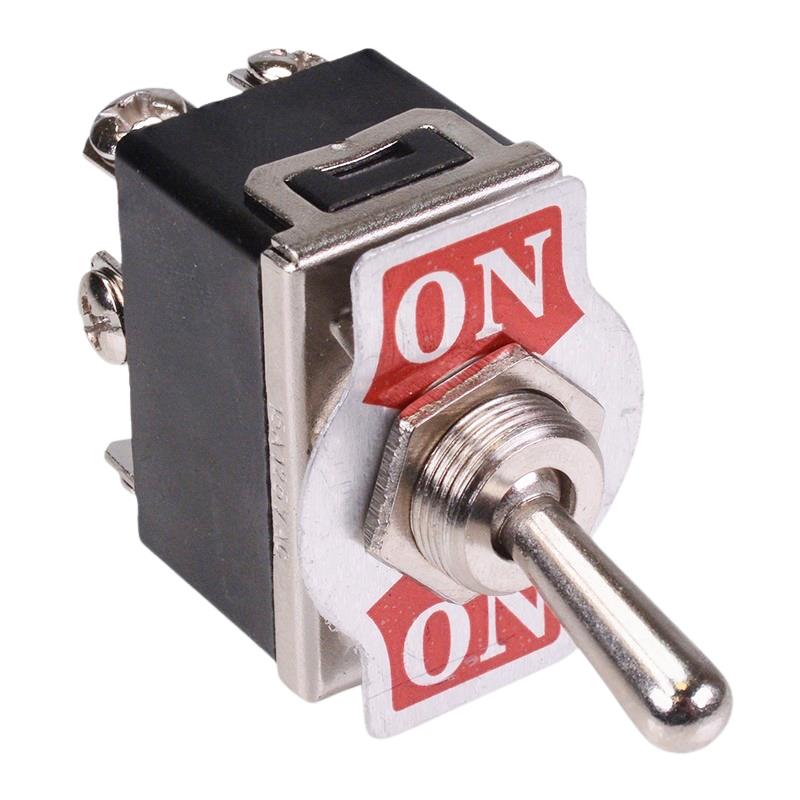

On-On Toggle Switch Screw Terminals 10A 250VAC DPDT

On-On Toggle Switch Screw Terminals 10A 250VAC DPDT 1

Buy Now

Specifications

Attributes List
Actuation	Latching
Contact Configuration	DPDT
Contact Rating	10A 250VAC
Current Rating	10A
Illuminated	No
Electrical Life	10,000 Cycles
Mounting Style	Panel
Number of Poles	2
Number of Positions	2
Operating Temperature	-25°C to +85°C
Panel Cut Out	12.2mm
Switch Operation	On-On
Terminal Type	Screw
Voltage Rating	250VAC

Description

On-On Toggle Switch Screw Terminals 10A 250VAC DPDT

Standard size toggle switch with screw terminals and supplied with indicator plate.

On-On action

DPDT contacts

12mm panel cut-out

10A 250VAC rating
