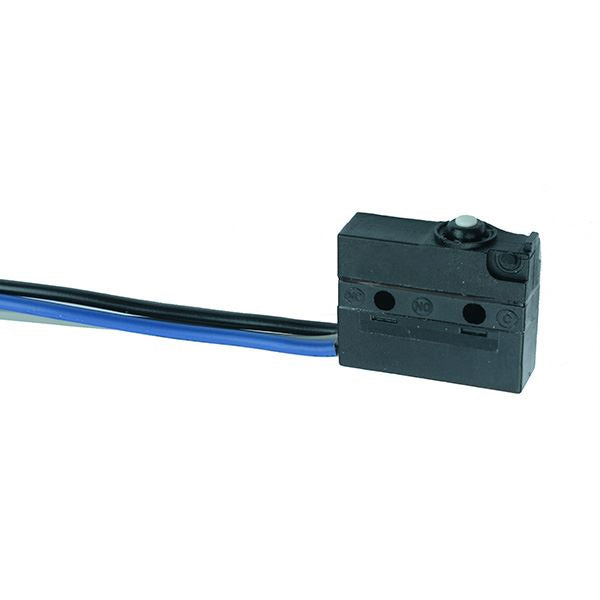

Prewired IP67 Push Button Microswitch SPDT 5A

Prewired IP67 Push Button Microswitch SPDT 5A 1

Buy Now

Specifications

Attributes List
Contact Configuration	SPDT
Contact Rating	5A 250VAC
Current Rating	5A
Electrical Life	6000 Cycles Min
Number of Positions	2
Protection Level	IP67
Operating Force	110gf Max
Operating Temperature	-25°C to +120°C
Terminal Type	Leads
Voltage Rating	250VAC

Description

High quality microswitch with a push button actuator, suitable for hard wearing applications including industrial and automotive.

Push button actuator

Rating: 5A 250VAC

SPDT, NO/NC

Maintained momentary action

110gf maximum operating force

IP67 protection level

500mm 20AWG UL1007 cable
