PtecK3CRC 3 Position Plastic Key Switch 10A 1NC

PtecK3CRC 3 Position Plastic Key Switch 10A 1NC 1

Buy Now

Specifications

Attributes List
Actuation	Latching
Colour	Black
Contact Configuration	1NC
Head Type	Key
Contact Rating	10A 500V
Current Rating	10A
Illuminated	No
Mounting Style	Panel
Number of Positions	3
Operating Temperature	-25°C to +70°C
Panel Cut Out	22.5mm
Product Series	Ptec
Terminal Type	Screw
Voltage Rating	500V

Description

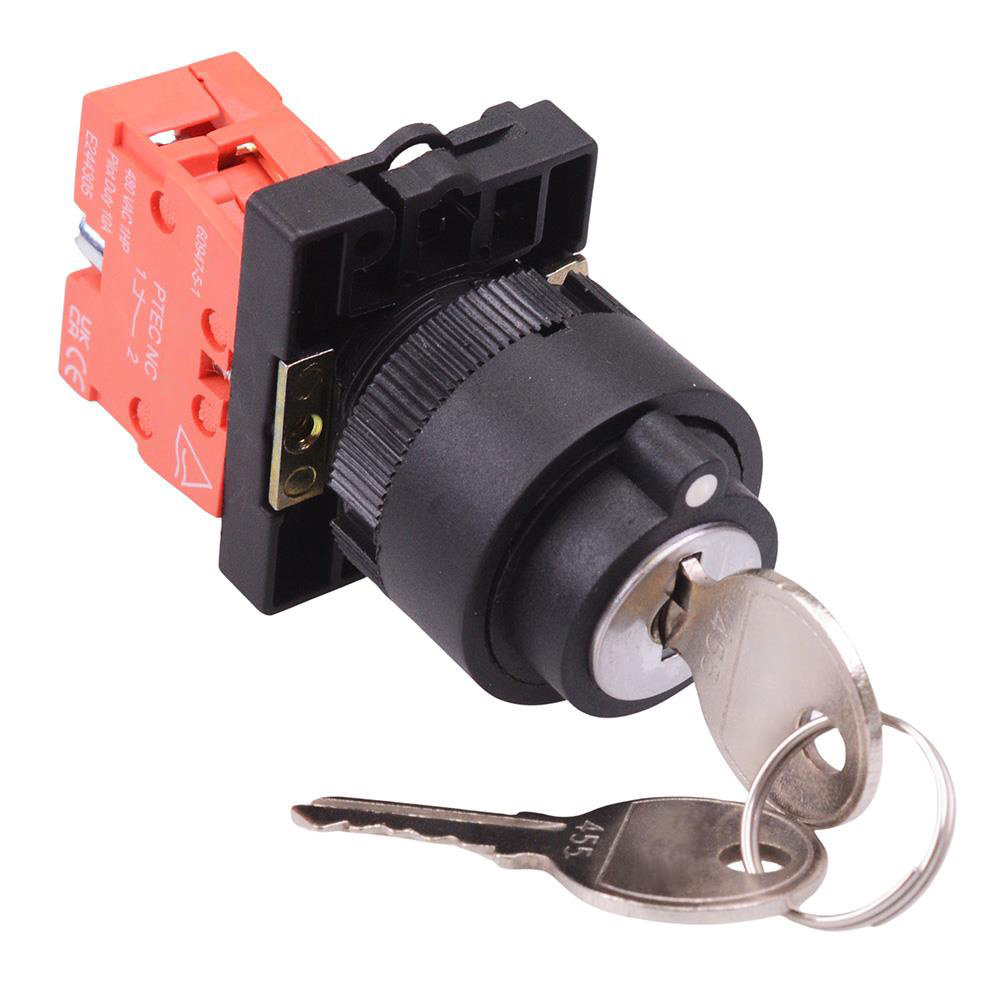

PtecK3CRC 3 Position Plastic Key Switch 10A 1NC
3 position key operated switch from socoje, featuring a 1NC contact and a plastic housing and suitable for standard 22.5mm mounting. The switch comes with 2 keys removable only in the central position.

Latched mechanism

Plastic housing

Supplied with mounting block

Fits panel thickness 1-6mm

22.5mm diameter

Rated insulation voltage: 500V

Rated thermal current: 10A

1NC contact
