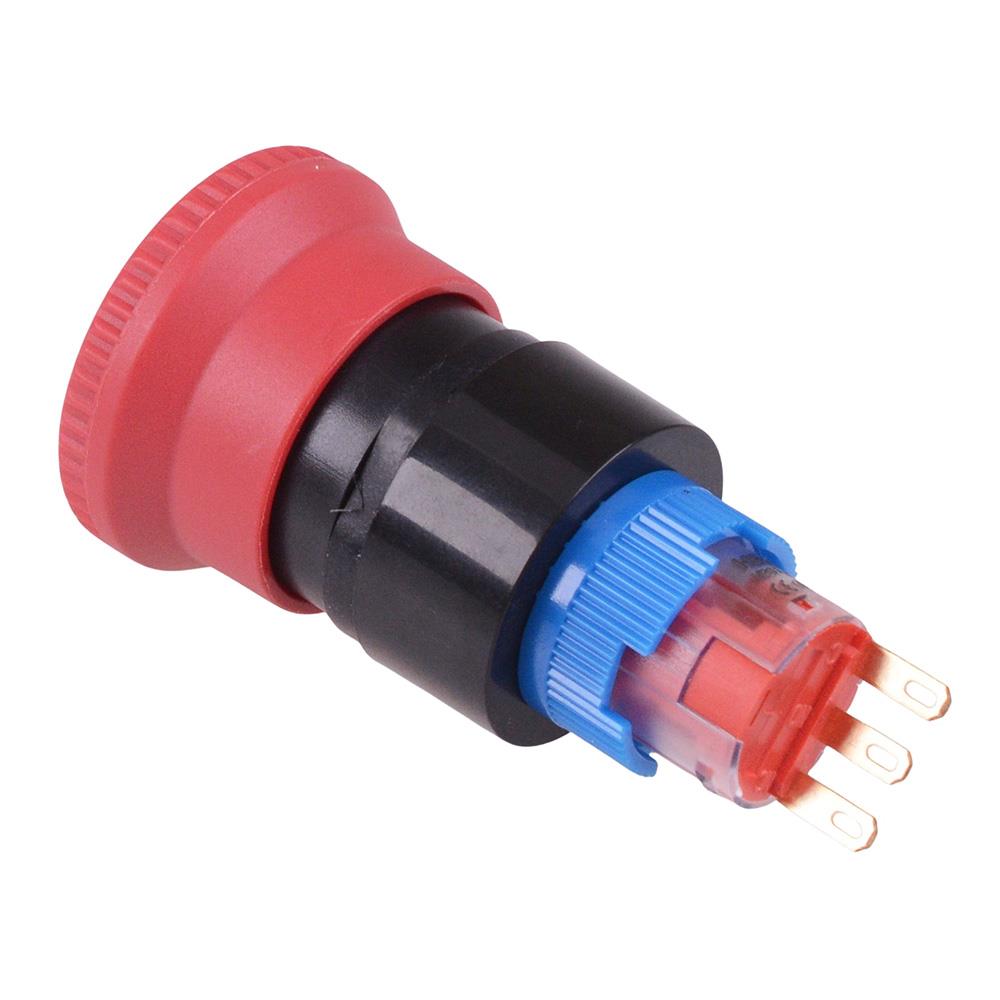

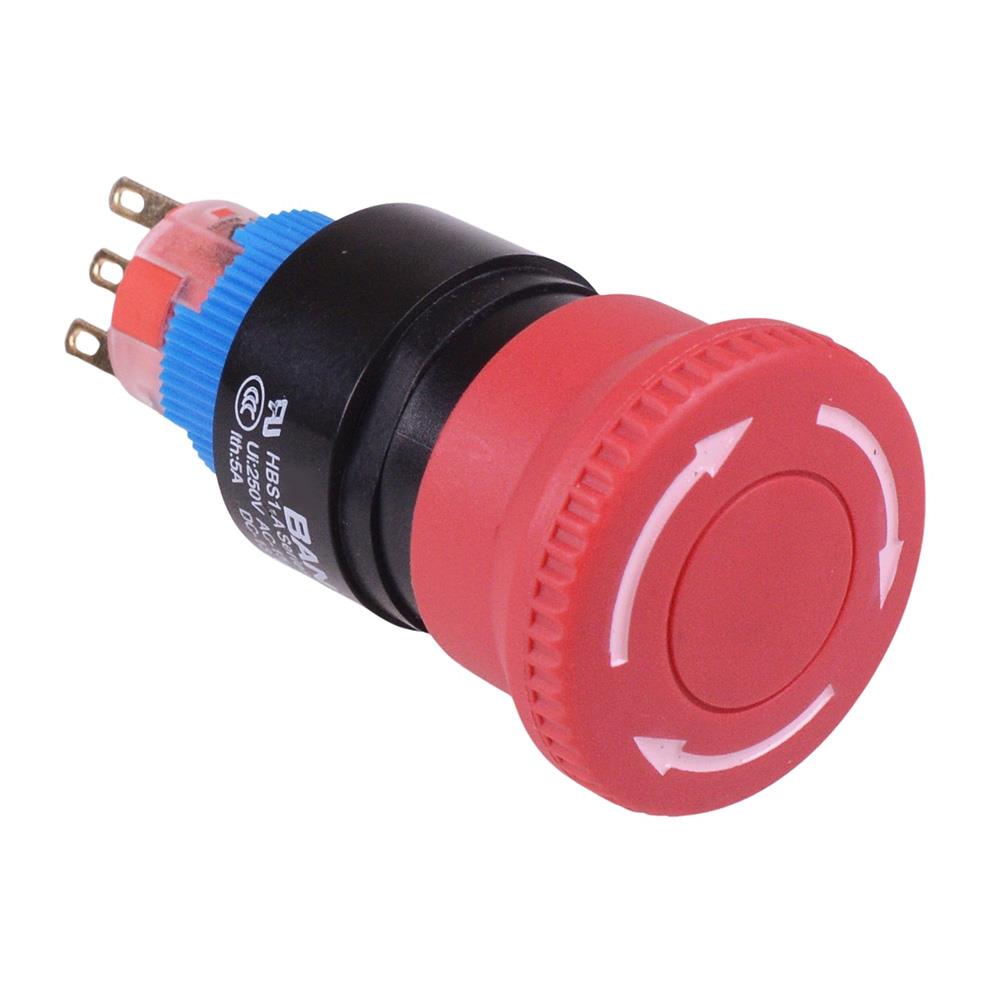

Red 22mm Emergency Stop Switch IP65 NO/NC

Red 22mm Emergency Stop Switch IP65 NO/NC 1

Buy Now

Specifications

Attributes List
Actuation	Twist Release
MOQ	1
Colour	Red
Contact Configuration	1NO-1NC
Head Type	Mushroom
Contact Material	Silver Alloy
Contact Rating	5A 250V
Current Rating	5A
Illuminated	No
Electrical Life	50,000 Cycles
Mounting Style	Panel
Number of Positions	2
Protection Level	IP65
Operating Temperature	-25°C to +65°C
Panel Cut Out	22mm
Panel Thickness	5mm
Terminal Type	Quick Connect
Voltage Rating	250V

Description

Red e-stop switch featuring a 1NO1NC contacts and red mushroom head with white markings. The switch requries a 22mm panel cut-out and features quick-connect terminals. The swich is suitable for a wide range of industrial applications requiring a compact emergency stop switch.

1NO1NC contacts

Red 31.9mm mushroom head

Panel cut-out: 22mm

Panel thickness: 1-5mm

Rated insulation voltage: 250V

Rated thermal current: 5A

2.8x0.5 quick connect / solder terminals

Protection rating: IP65

Dimensions: 63 x 31.9mm height x diameter)
