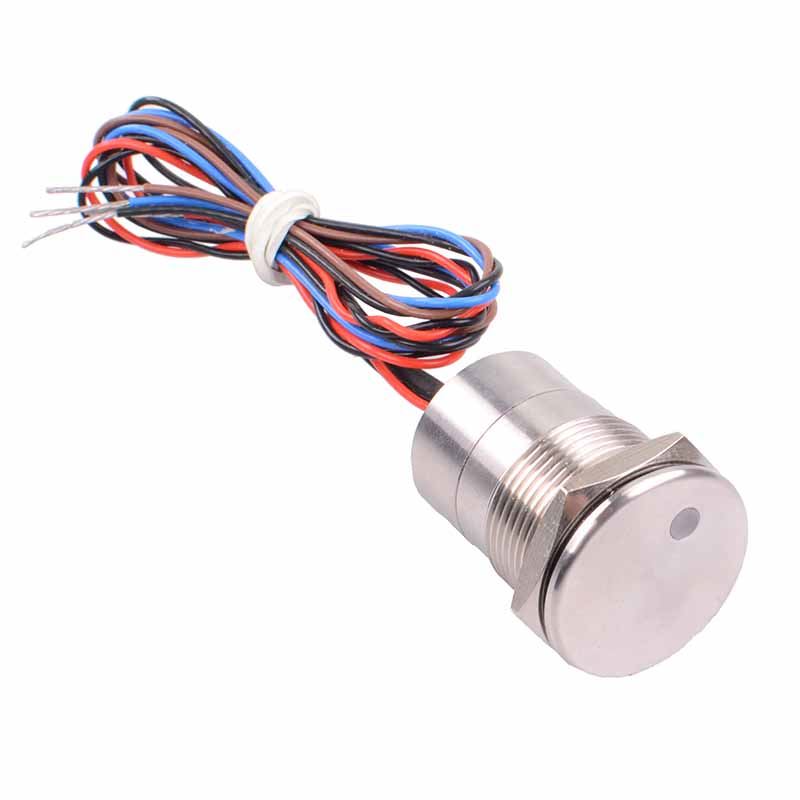

Red Dot LED On-Off 19mm Metal Latching Piezo Switch SPST

Red Dot LED On-Off 19mm Metal Latching Piezo Switch SPST 1

Buy Now

Specifications

Attributes List
Actuation	Latching
Colour	Red
Contact Configuration	SPST
Contact Rating	0.2A 24V
Current Rating	0.2A
Illuminated	Yes
Electrical Life	50,000,000+ Cycles
Illumination Colour	Red
Illumination Voltage	12VDC
Material	Aluminium
Mounting Style	Panel
Number of Poles	1
Number of Positions	2
Protection Level	IP68
Operating Temperature	-40°C to +75°C
Panel Cut Out	19mm
Switch Operation	On-Off
Terminal Type	Flying Leads
Voltage Rating	24VDC

Description

Red dot latching piezo switch featuring a sealed and vandal proof design providing solid state switching. The switch has a life expectancy of over 50 million cycles and is ideal for demanding applications where reliability is critical.

NO latching function

Red LED Dot 12VDC illumination

19mm panel cut-out diameter

1.3mm height flat operator

22mm diameter head

Flying leads

Rating: 200mA 24VAC/DC

Download
