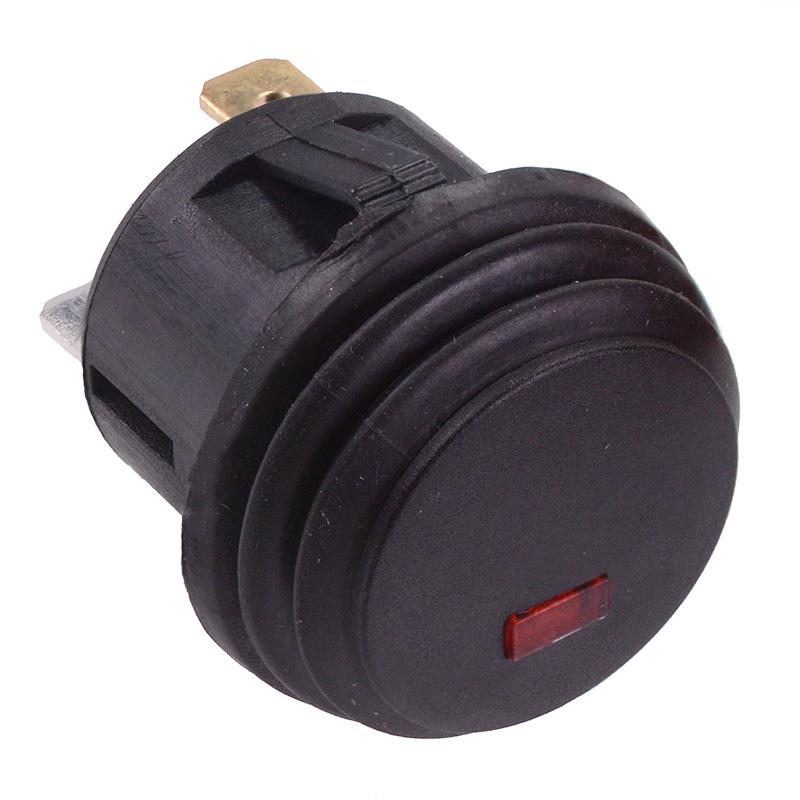

Red Dot On-Off 12V illuminated Push Button Switch 20A

Red Dot On-Off 12V illuminated Push Button Switch 20A 1

Buy Now

Specifications

Attributes List
Actuation	Latching
Colour	Red
Contact Configuration	SPST
Contact Rating	20A 12VDC
Current Rating	20A
Illuminated	Yes
Electrical Life	10,000 Cycles
Illumination Colour	Red
Illumination Voltage	12VDC
Mounting Style	Panel
Number of Positions	2
Operating Temperature	-25°C to +85°C
Panel Cut Out	20mm
Switch Operation	On-Off
Terminal Type	Quick Connect
Voltage Rating	12VDC

Description

Red Dot On-Off 12V illuminated Push Button Switch 20A

illuminated push button switch featuring a red dot LED and quick connect terminals suitable for 12V applications including automotive.

On-Off action

SPST contacts

Red 12V LED

Rating: 20A 12VDC

4.8mm quick connect terminals

Panel cut-out: 20mm

Dimensions: 35.7 x 25mm (Height x Diameter)
