Red LED 19mm Latching Vandal Resistant Push Button Switch SPDT 21A 12V

Red LED 19mm Latching Vandal Resistant Push Button Switch SPDT 21A 12V
Red LED 19mm Latching Vandal Resistant Push Button Switch SPDT 21A 12V
Red LED 19mm Latching Vandal Resistant Push Button Switch SPDT 21A 12V
Red LED 19mm Latching Vandal Resistant Push Button Switch SPDT 21A 12V
Red LED 19mm Latching Vandal Resistant Push Button Switch SPDT 21A 12V
0 reviews - Write a review
from
$20.73
Ex Tax: $20.73
10 or more $18.46
25 or more $17.42
50 or more $16.39
100 or more $15.56
  • Stock: In Stock
  • Model: SCJ013744
  • SKU: SCJ013744
Products Sold: 0
Product Views: 485
Add to Cart
Buy Now Ask a question
Add to Wish List Compare this Product
Add to Cart
Buy Now
  • Specifications
Attributes List
ActuationLatching
ColourRed
Contact ConfigurationSPDT
Contact Rating21A 250VAC
Current Rating21A
IlluminatedYes
Electrical Life50,000+ Cycles
Illumination ColourRed
Illumination Voltage12VDC
MaterialStainless Steel
Mounting StylePanel
Number of Positions2
Protection LevelIP65
Operating Temperature-25°C to +85°C
Panel Cut Out19mm
Switch OperationOn-On
Terminal TypeQuick Connect
Voltage Rating250VAC
  • Description

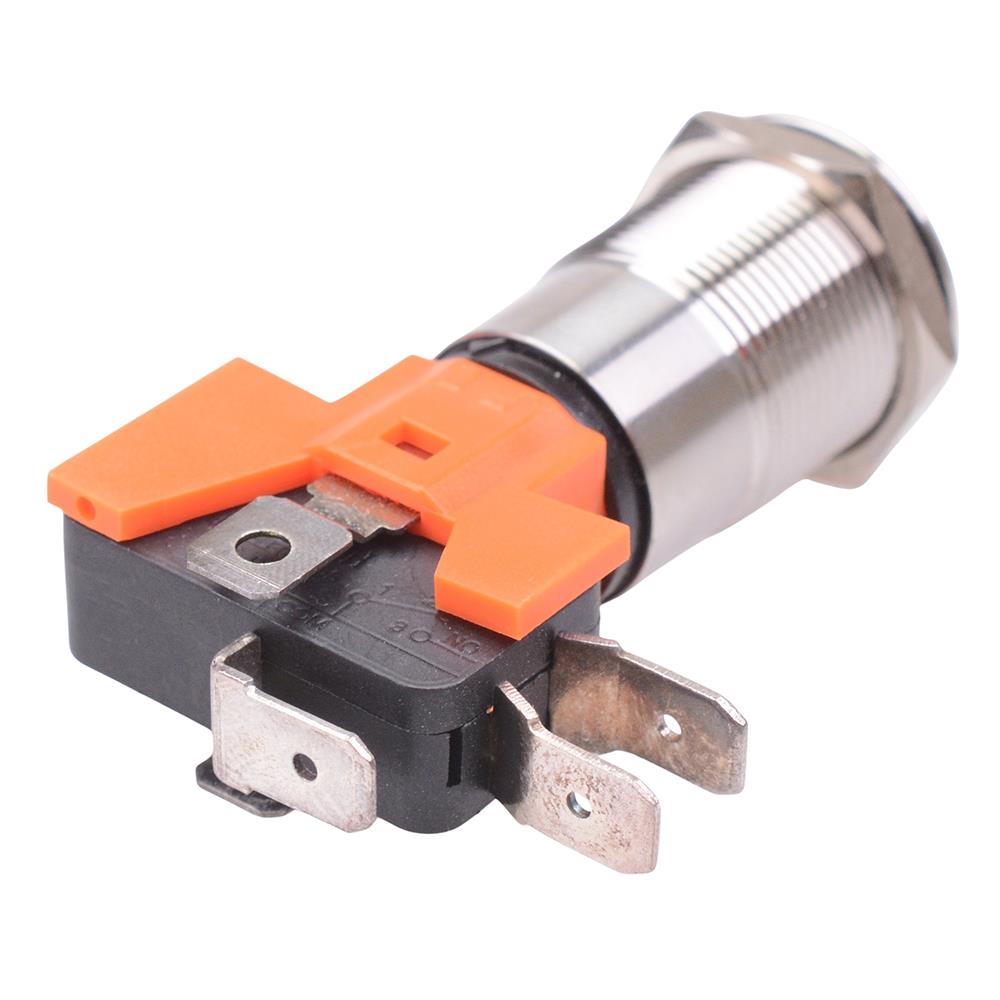

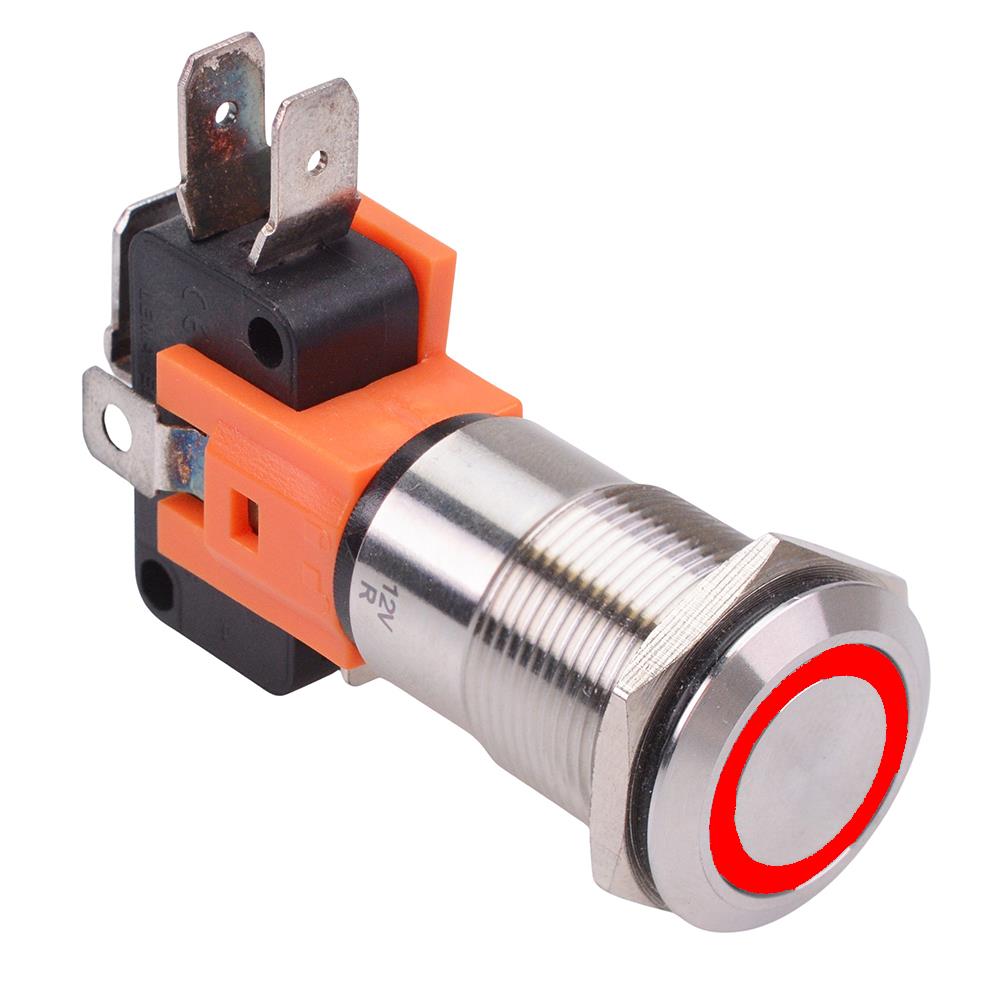

Latching 19mm vandal resistant push button switch featuring a 21A current rating and red 12V LED. The switch features SPDT contacts and a removable microswitch making it suitable for high current 12V applications including automotive.

  • Latching On-On action
  • NO/NC contacts
  • Red LED
  • 12V illumination voltage
  • IP65 protection rating
  • 19mm panel cut-out diameter
  • Stainless steel body
  • Removable microswitch
  • 6.35mm quick connect terminals
  • Rating: 21A 250VAC

    • Red LED 19mm Latching Vandal Resistant Push Button Switch SPDT 21A 12V

    Red LED 19mm Latching Vandal Resistant Push Button Switch SPDT 21A 12V
