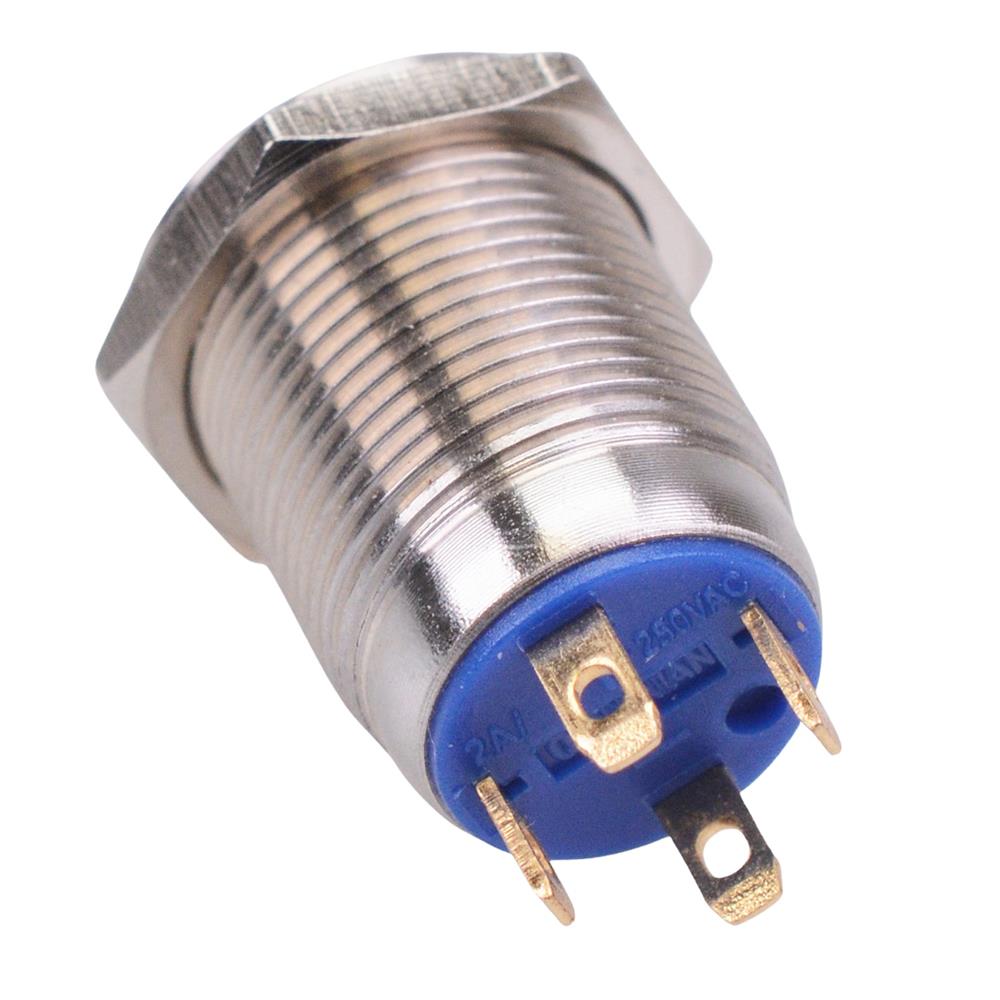

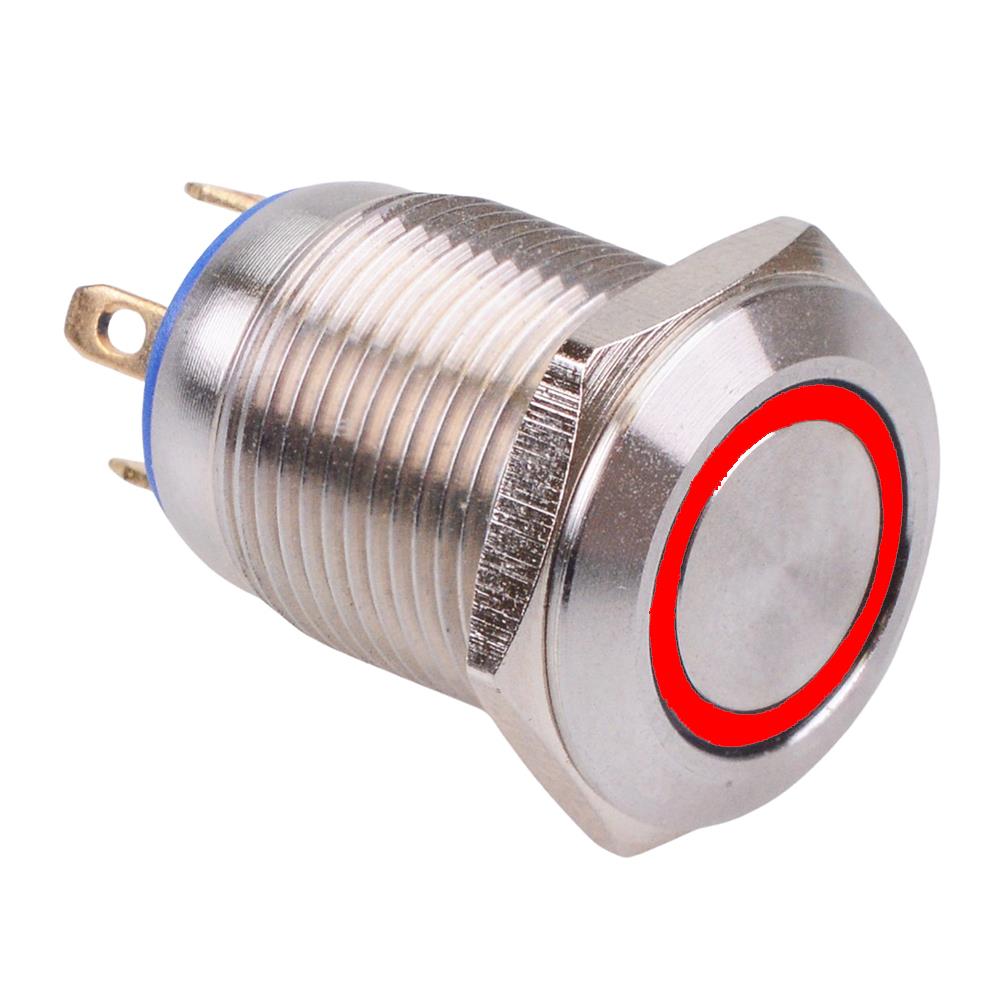

Red LED Off-(On) Momentary 12mm Vandal Resistant Push Button Switch SPST

Red LED Off-(On) Momentary 12mm Vandal Resistant Push Button Switch SPST
Red LED Off-(On) Momentary 12mm Vandal Resistant Push Button Switch SPST
Red LED Off-(On) Momentary 12mm Vandal Resistant Push Button Switch SPST
Red LED Off-(On) Momentary 12mm Vandal Resistant Push Button Switch SPST
Red LED Off-(On) Momentary 12mm Vandal Resistant Push Button Switch SPST
0 reviews - Write a review
from
$6.49
Ex Tax: $6.49
10 or more $5.77
25 or more $5.45
50 or more $5.12
100 or more $4.87
  • Stock: In Stock
  • Model: SCJ013722
  • SKU: SCJ013722
Products Sold: 0
Product Views: 542
Add to Cart
Buy Now Ask a question
Add to Wish List Compare this Product
Add to Cart
Buy Now
  • Specifications
Attributes List
ActuationMomentary
ColourRed
Contact ConfigurationSPDT
Contact Rating2A 36VDC
Current Rating2A
IlluminatedYes
Electrical Life50,000 Cycles
Illumination ColourRed
Illumination Voltage12VDC
MaterialStainless Steel
Mounting StylePanel
Number of Positions2
Protection LevelIP65
Operating Temperature-25°C to +85°C
Panel Cut Out12mm
Switch OperationOff-(On)
Terminal TypeQuick Connect
Voltage Rating36VDC
  • Description
Momentary vandal resistant push button switch featuring a red 12V LED and SPST normally open contacts. The switch is manufactured from stainless steel and features IP65 protection rating, making it suitable for a wide range of automotive and other 12V applications.

  • Momentary Off-(On) action
  • SPST-NO contacts
  • Red LED
  • 12V illumination voltage
  • IP65 protection rating
  • 12mm panel cut-out diameter
  • Solder terminals
  • Rating: 2A 36VDC

    • Red LED Off-(On) Momentary 12mm Vandal Resistant Push Button Switch SPST

    Red LED Off-(On) Momentary 12mm Vandal Resistant Push Button Switch SPST
