Red On-(On) 28mm Vandal Momentary Push Button Switch DPDT 12V

Buy Now

Specifications

Attributes List
Actuation	Momentary
Contact Configuration	SPDT
Contact Rating	5A 250VAC
Current Rating	5A
Illuminated	Yes
Electrical Life	50,000 Cycles
Illumination Colour	Red
Illumination Voltage	12VDC
Material	Stainless Steel
Mounting Style	Panel
Number of Poles	2
Number of Positions	2
Protection Level	IP67
Operating Temperature	-20°C to +85°C
Panel Cut Out	28mm
Switch Operation	On-(On)

Description

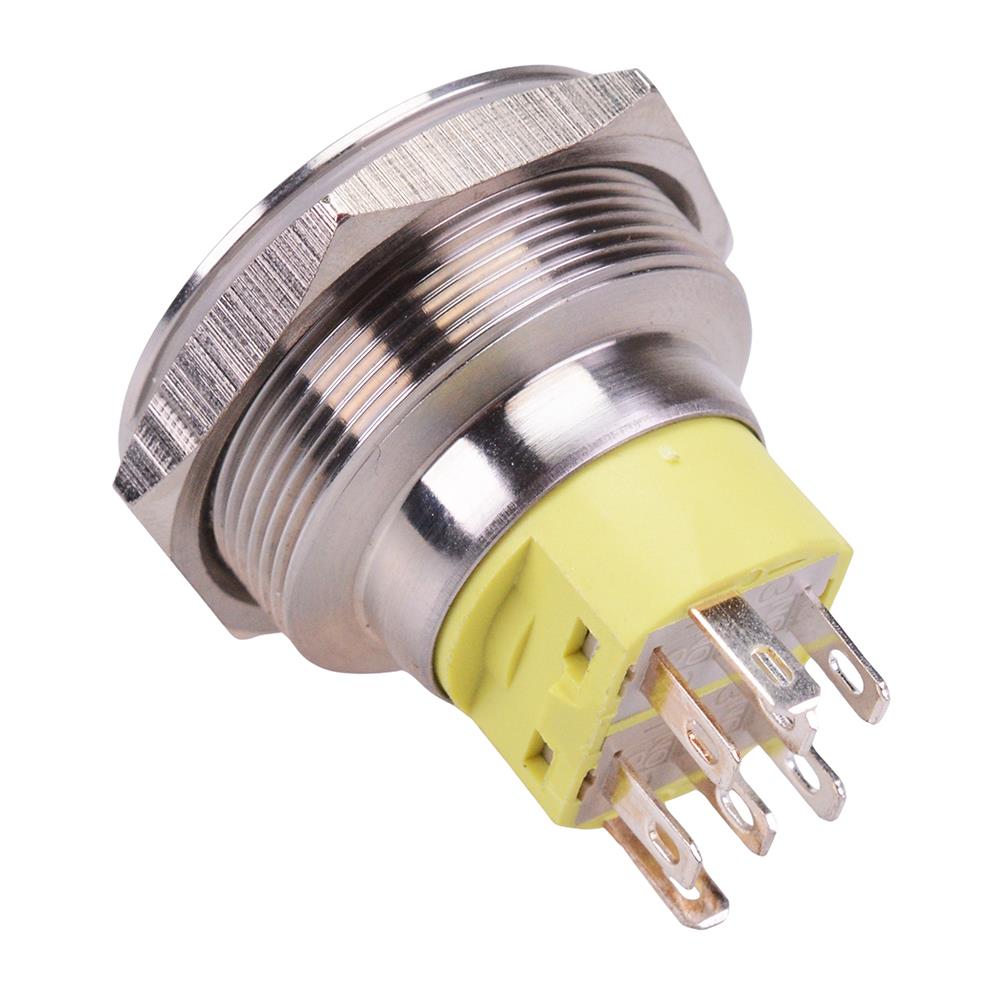

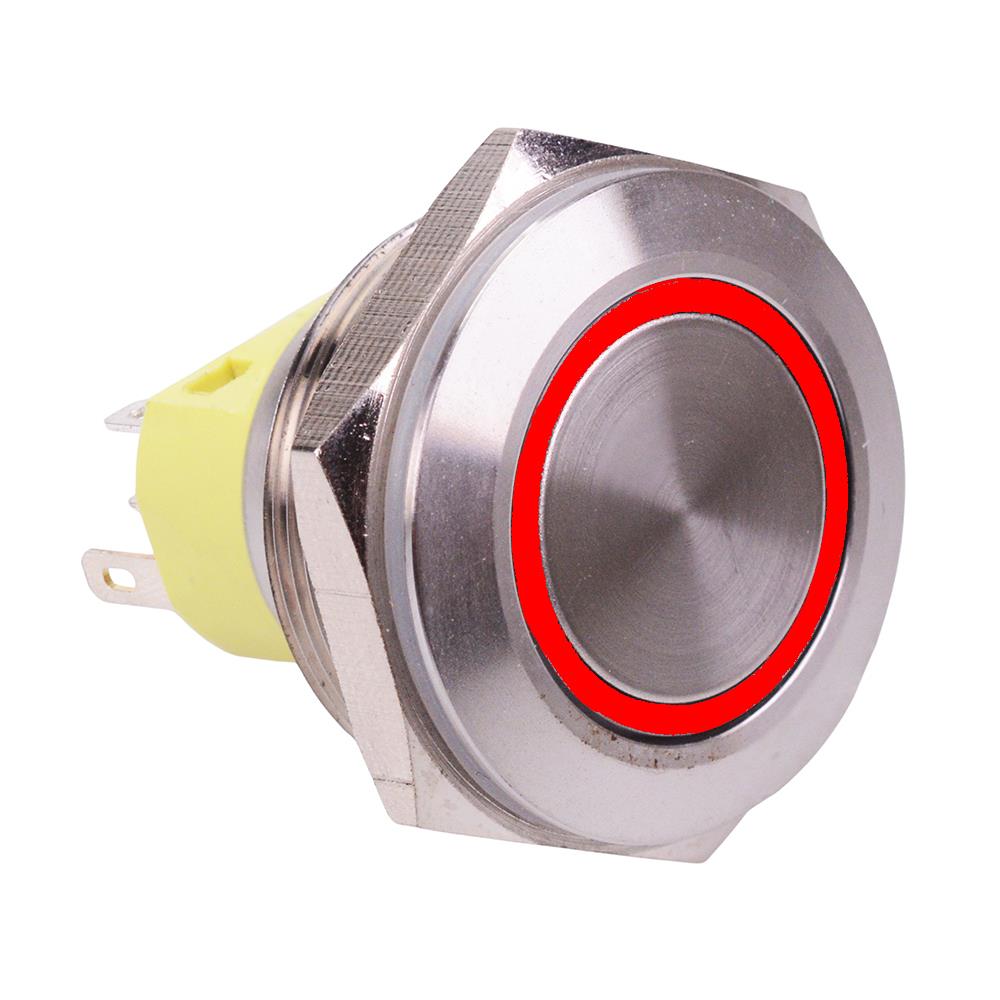

Red On-(On) 28mm Vandal Momentary Push Button Switch DPDT 12V

Momentary vandal resistant 28mm push button switch featuring a red 12V LED and DPDT contacts. The switch is manufactured from stainless steel and features IP67 protection rating, making it suitable for a wide range of automotive and other 12V applications.

Momentary action

Red LED

12V illumination voltage

IP67 protection rating

28mm panel cut-out diameter

2NO/2NC contacts

2.8mm terminals

Rating: 5A 250VAC
