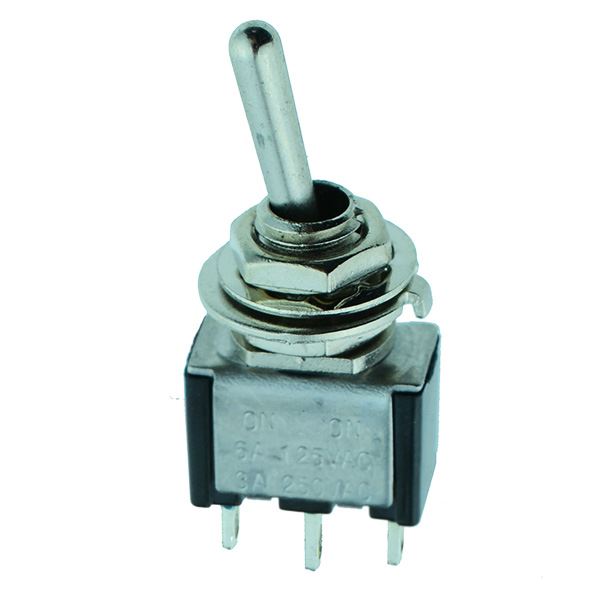

On-On Miniature Toggle Switch SPDT 3A TA102A1

Buy Now

Specifications

Attributes List
Actuation	Latching
Contact Configuration	SPDT
Contact Rating	3A 250VAC
Current Rating	3A
Illuminated	No
Electrical Life	10,000 Cycles
Mounting Style	Panel
Number of Poles	1
Number of Positions	2
Operating Temperature	-20°C to +65°C
Panel Cut Out	6.2mm
Switch Operation	On-On
Terminal Type	Solder
Voltage Rating	250VAC

Description

On-On Miniature Toggle Switch SPDT 3A TA102A1

TA102A1 high quality miniature size On-On toggle switch featuring SPDT contacts suitable for low power applications requiring a reliable cost effective switch.

On-On action

SPDT contacts

6.2mm panel cut-out

Solder contacts

Maximum current: 3A

Maximum voltage: 250VAC

Epoxy sealed for dust and moisture resistance
