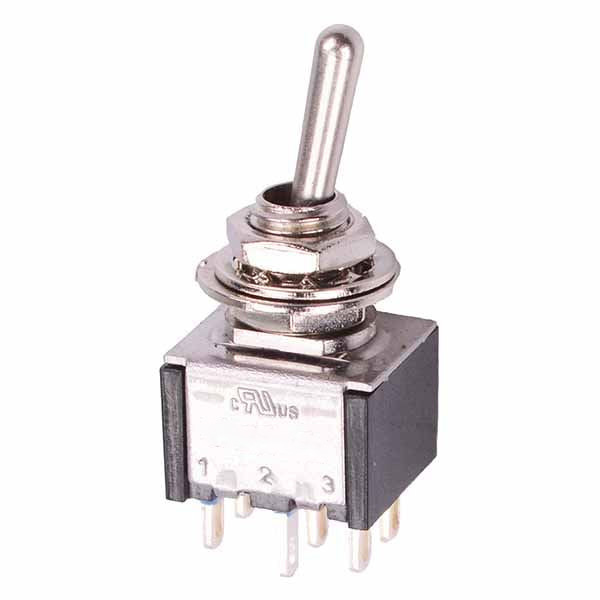

On-On Miniature Toggle Switch DPDT 3A TA202A1

On-On Miniature Toggle Switch DPDT 3A TA202A1 1

Buy Now

Specifications

Attributes List
Actuation	Latching
Contact Configuration	DPDT
Contact Rating	3A 250VAC
Current Rating	3A
Illuminated	No
Electrical Life	10,000 Cycles
Mounting Style	Panel
Number of Poles	1
Number of Positions	2
Operating Temperature	-20°C to +65°C
Panel Cut Out	6.2mm
Switch Operation	On-On
Terminal Type	Solder
Voltage Rating	250VAC

Description

On-On Miniature Toggle Switch DPDT 3A TA202A1

TA202A1 high quality miniature size centre off toggle switch featuring DPDT contacts suitable for low power applications requiring a reliable cost effective switch.

On-On action

DPDT contacts

6.2mm panel cut-out

Solder contacts

Maximum current: 3A

Maximum voltage: 250VAC

Epoxy sealed for dust and moisture resistance
