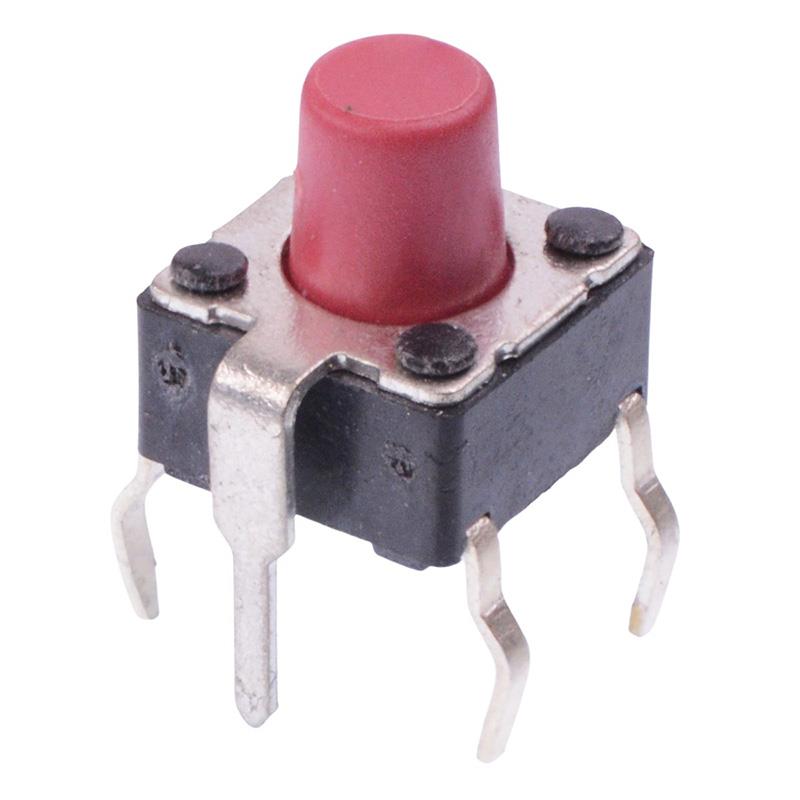

DTSG63R 13mm PCB Tactile Switch 6x6mm SPST

DTSG63R 13mm PCB Tactile Switch 6x6mm SPST 1

Buy Now

Specifications

Attributes List
Actuation	Momentary
Height	13mm
MOQ	5
Contact Configuration	SPST
Contact Rating	50mA 12VDC
Current Rating	50mA
Electrical Life	100,000 Cycles
Mounting Style	PCB
Number of Positions	2
Operating Force	260gf
Operating Temperature	-25°C to +70°C
Pitch	6.5 x 4.5mm
Product Series	DTS
Switch Operation	Off-(On)
Terminal Type	Through Hole
Voltage Rating	12VDC

Description

The DTSG63R is a 6x6mm package tactile switch with ground pin suitable for through hole PCB applications. The switch features 50mA 12VDC contact rating and is suitable for a wide range of applications including industrial, instrumentatation, audio equipment etc.

6x6mm package

13mm height (includes switch body)

Contact rating: 50mA 12VDC

Operating force: 260gf

Terminal pitch: 6.5 x 4.5mm
